Same model may have multiple batches, images only for reference.

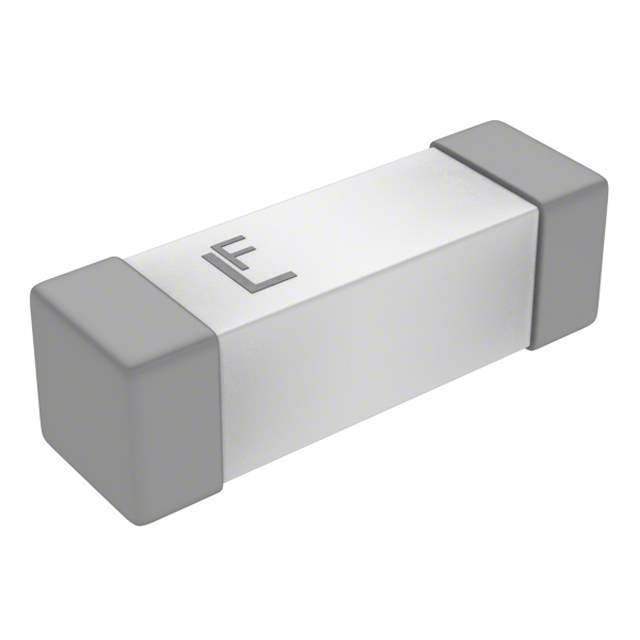

0456030.ER Real Image
Same model may have multiple batches, images only for reference.

0456030.ER

Part No 0456030.ER
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Fuse Chip 30A 125V SMD Solder Pad 10.1 X 3.12mm Ceramic T/R CSA/PSE/TUV/cULus / FUSE BOARD MNT 30A 125VAC 72VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 30A
Voltage Rating - AC 125V
Voltage Rating - DC 72V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 100A AC, 500A DC
Nominal Melting - I2t 81
Approvals cULus, PSE
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.00132 Ohm
Win Source Part Number 1000163-0456030.ER
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Safety, Computers & Computer Peripherals, Power Management, HVAC, Automotive
Family Name 456
Introduction Date August 01, 2007
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 0456030.ER CAD Model

Description

The Littelfuse Inc. 1000163-0456030.ER is a high-performance board-mount fuse designed for use in various electronic devices, such as computers, power management systems, and automotive applications.

  • Current Rating: 30A
  • Voltage Rating: 125V AC and 72V DC
  • Response Time: Fast
  • Breaking Capacity: 100A AC and 500A DC @ rated voltage
  • Package: Reel package
  • Compliance: Halogen-free compliant
  • Ideal for: High-current protection
