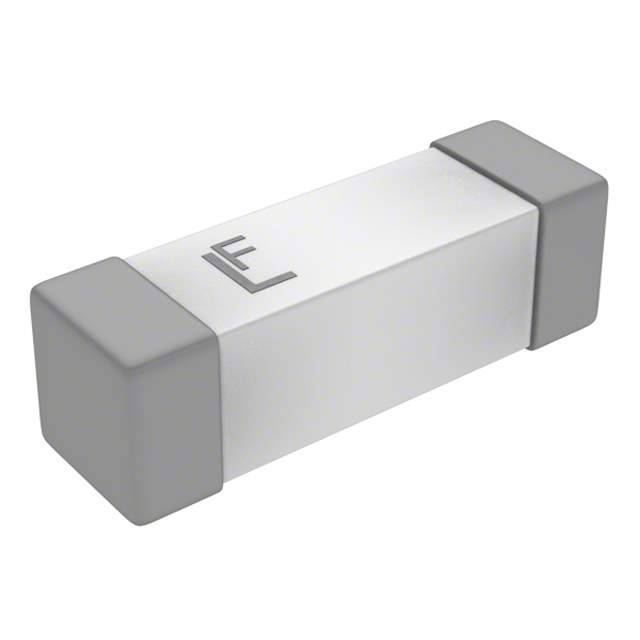

0456020.ER Littelfuse Inc. 0456020.ER Real Image
Same model may have multiple batches, images only for reference.
0456020.ER Littelfuse Inc. 0456020.ER Real Image
0456020.ER Littelfuse Inc. 0456020.ER Real Image
Same model may have multiple batches, images only for reference.

0456020.ER

Part No 0456020.ER
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Fuse Chip 20A 125V SMD Solder Pad 10.1 X 3.12mm Ceramic T/R CSA/PSE/TUV/cULus / FUSE BOARD MNT 20A 125VAC 100VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 20A
Voltage Rating - AC 125V
Voltage Rating - DC 100V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 100A AC, 300A DC
Nominal Melting - I2t 18
Approvals cULus, PSE
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.0023 Ohm
Win Source Part Number 005054-0456020.ER
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Safety, Computers & Computer Peripherals, Power Management, HVAC, Automotive
Family Name 456
Introduction Date August 01, 2007
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 0456020.ER CAD Model

Description

Product Overview

The 0456020.ER is a cutting-edge component known for its superior performance and adaptability, suitable for a wide range of applications.

Applications

  • Telecommunications
  • Medical Devices
  • Renewable Energy Systems

Features and Benefits

  • Advanced technology for high performance
  • Robust construction to withstand demanding conditions
  • Simple installation for user convenience

Additional Details

This product is essential for projects requiring precision and resilience.
