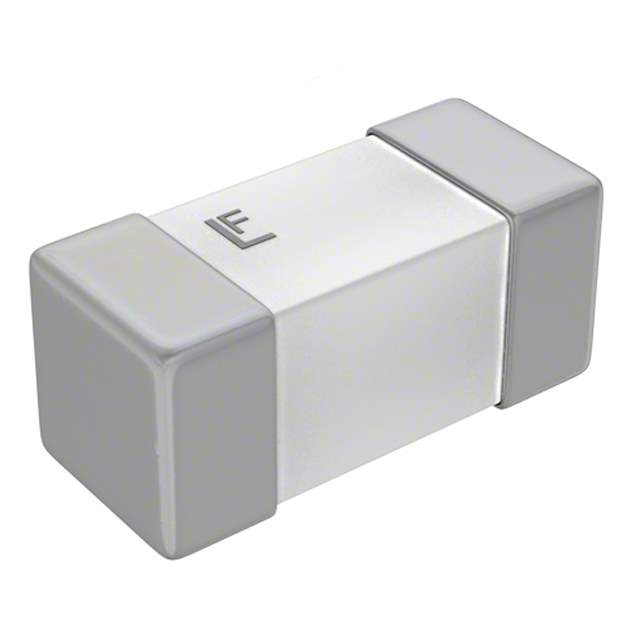

Same model may have multiple batches, images only for reference.

0453.250NR

Name: 0453.250NR
Brand: Littelfuse Inc.
SKU: 1136082
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	0453.250NR
Manufacturer	Littelfuse Inc.
Catalog	Fuses
Description	FUSE BOARD MNT 250MA 125VAC/VDC / 250 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>Fuses
Mfr	Littelfuse Inc.
Series	NANO²® 453
Package	Tape & Reel (TR)
Mounting	SMD (SMT)
Fuse Type	Board Mount (Cartridge Style Excluded)
Current Rating (Amps)	250 mA
Voltage Rating - AC	125 V
Voltage Rating - DC	125 V
Response Time	Fast Blow
Package / Case	2-SMD, Square End Block
Breaking Capacity @ Rated Voltage	50A
Melting I2t	0.0158
Approval Agency	CSA, UL
Temperature Range - Operating	-55°C ~ 125°C
Dimension	0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm)
DC Cold Resistance	0.5765 Ohms
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.10.0040
Other Names	-0453.250NR,453.250NR
Standard Package	5,000
Win Source Part Number	1136082-0453.250NR
Ultra Librarian 3D Model	Ultra Librarian 0453.250NR CAD Model

Description

The Littelfuse Inc. 0453.250NR is a fast-blow board mount fuse that belongs to the circuit protection category of electronic components.

Voltage Rating: 125V AC and DC
Response Time: Fast Blow
Breaking Capacity @ Rated Voltage: 50A
DC Cold Resistance: 0.5765 Ohms
Standard Package: 5,000
Mounting: SMD (SMT)
Temperature Range: -55°C to 125°C
Dimension: 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm)
MSL Level: 1 (unlimited)
HTSUS Code: 8536.10.0040
