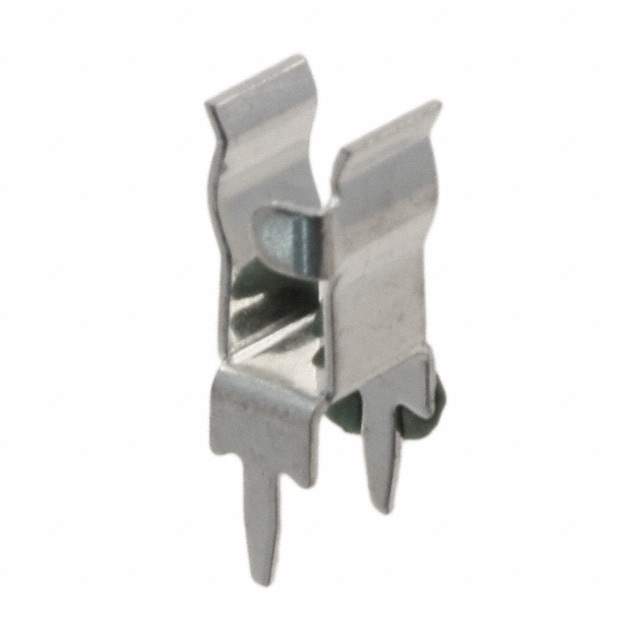

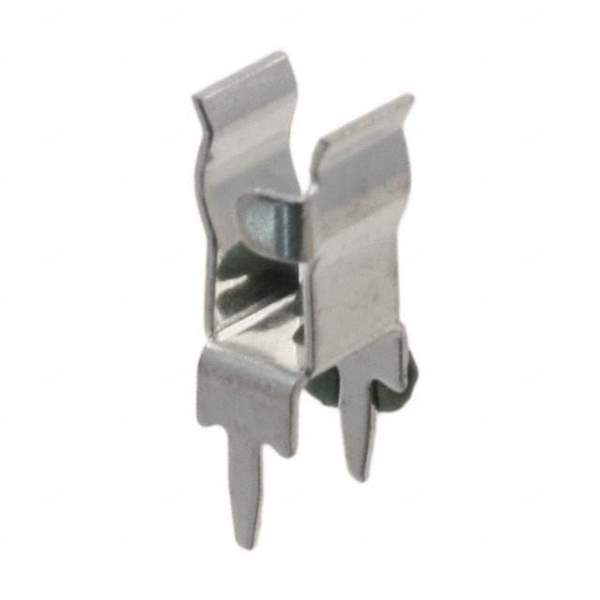

The 04450001H is a fuseholder manufactured by Littelfuse Inc. It's a surface mount fuse clip, designed to hold a fuse on a printed circuit board (PCB), providing circuit protection in a compact form factor.

Applications

• Surface mount applications on PCBs
• Low voltage power distribution
• Protection for small electronic devices
• LED lighting applications
• Small appliance circuit protection

Features

• Mounting Type: Surface Mount
• Fuse Size: Designed for specific small size fuses (e.g., 2410, 1206)
• Material: Typically constructed from copper alloy with tin plating
• Voltage Rating: Low voltage applications
• Current Rating: Designed for low to medium current ranges

Benefits

• Compact size suitable for high density PCB layouts
• Provides easy fuse replacement
• Offers overcurrent protection for sensitive circuits
• Reduces board space compared to traditional fuseholders
• Cost-effective circuit protection solution

Additional Details

The 04450001H is often used with small surface mount fuses. The solder pads and dimensions for mounting are critical for proper installation and reliable contact. Littelfuse datasheets provide detailed information on recommended soldering profiles, materials, and electrical characteristics. Ensuring proper solder reflow during assembly is essential for optimal performance.
