Same model may have multiple batches, images only for reference.

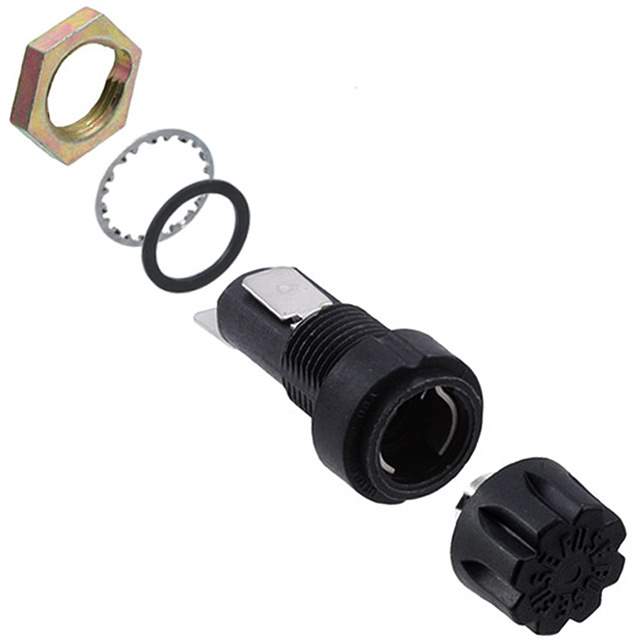

03420838HXL Real Image
Same model may have multiple batches, images only for reference.

03420838HXL

Part No 03420838HXL
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 250V 20A PNL MNT / Fuse Holder 20 A 250V 1 Circuit Cartridge Panel Mount
Datasheet
03420838HXL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Littelfuse Inc.
Series 342
Package Bulk
Mounting Type Panel Mount
Fuse Size 0.25" Dia x 1.26" L (6.35mm x 32mm)
Current Rating (Amps) 20 A
For Use With/Related Products 3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 250V
Termination Style Quick Connect - 0.250" (6.3mm)
Contact Material Brass
Contact Finish Nickel
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Other Names H342838L,-03420838HXL,342838L,F4874,03420838HXL-ND,1294-03420838HXL
Standard Package 100
Win Source Part Number 1033583-03420838HXL
Ultra Librarian 3D Model Ultra Librarian 03420838HXL CAD Model

Description

The Littelfuse Inc. 1033583-03420838HXL is a 20A 250V cartridge fuseholder with quick connect termination style of 0.250" (6.3mm). It is part of the 342 series and has a nickel contact finish.

  • Termination Style: 0.250" (6.3mm)
  • Contact Finish: Nickel
  • Package: Bulk
  • Mounting Type: Panel Mount
  • Fuse Size: 3AG, 1/4" x 1-1/4" (SFE-20)
  • Circuit: Single
  • Orientation: Not Specified
  • Alternative Parts: Not Available
  • MSL Level: Not Available
  • HTSUS Code: 8538.90.8180
  • Manufacturer: Littelfuse Inc.
