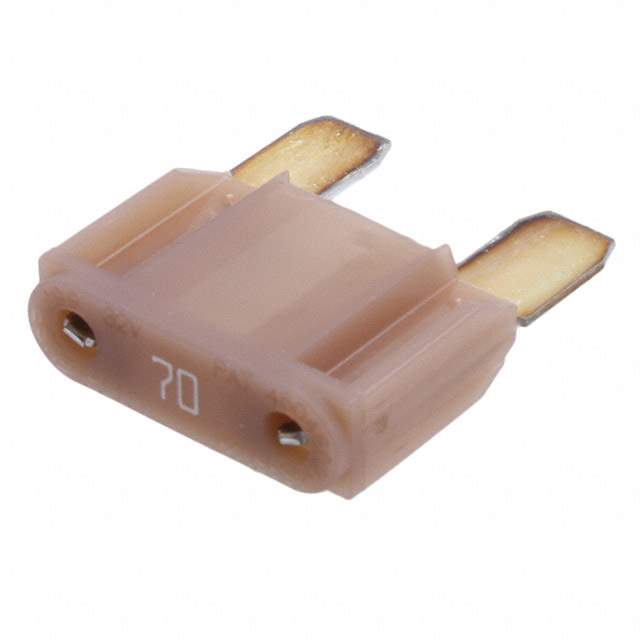

0299070.ZXNV Real Image
Same model may have multiple batches, images only for reference.

0299070.ZXNV

Part No 0299070.ZXNV
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 70A 32VDC BLADE / 70 A AC 32 V DC Fuse Automotive Holder Blade, Max
Datasheet
0299070.ZXNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series MAXI®
Package Bulk
Mounting Type Holder
Fuse Type Automotive
Current Rating (Amps) 70 A
Voltage Rating - DC 32 V
Response Time Slow Blow
Package / Case Blade, Max
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 6900
Temperature Range - Operating -40°C ~ 125°C
Color Tan
Dimension 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm)
DC Cold Resistance 0.00094 Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Names 0299070ZXNV,-1024-0299070.ZXNV,0299070.ZXOCR-ND,299070.,0299070.ZXNV-ND,299070,F3646,0299070.ZXOCR
Standard Package 1,200
Win Source Part Number 962783-0299070.ZXNV
Ultra Librarian 3D Model Ultra Librarian 0299070.ZXNV CAD Model

Description

The 962783-0299070.ZXNV is an automotive fuse from Littelfuse Inc. that belongs to the MAXI series.

  • Response Time: Slow-blow
  • Voltage Rating: 32V DC
  • Breaking Capacity @ Rated Voltage: 1kA
  • Current Rating: 70A
  • DC Cold Resistance: 0.00094 Ohms
  • Melting I2t: 6900
  • Package: Blade, Max
  • Dimension: 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm)
  • Mounting: Holder
  • Temperature Range: -40°C to 125°C
  • Approval: UL
