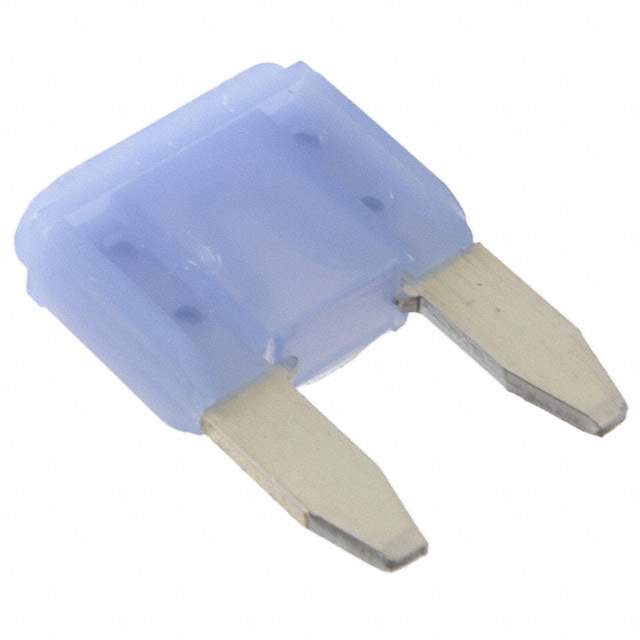

0297015.WXNV Real Image
Same model may have multiple batches, images only for reference.

0297015.WXNV

Part No 0297015.WXNV
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 15A 32VDC BLADE MINI / MINI® BLADE FUSE RATED 32V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Automotive
Current Rating (Amps) 15A
Voltage Rating - DC 32V
Response Time Fast Blow
Manufacturer Package Blade, Miniature
Mounting Style Holder
Breaking Capacity at Rated Voltage 1kA
Melting I2t 270
Temperature Range - Operating -40°C ~ 125°C
Color Blue
Dimension 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
DC Cold Resistance 0.00458 Ohms
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 801999-0297015.WXNV
Ultra Librarian 3D Model Ultra Librarian 0297015.WXNV CAD Model

Description

The 0297015.WXNV automotive blade miniature fuse from Littelfuse Inc. is an automotive blade miniature fuse.

  • Mounting Type: Holder
  • Voltage Rating: 32VDC
  • Current Rating: 15A
  • Response Time: Fast Blow
  • Breaking Capacity @ Rated Voltage: 1kA
  • Melting I2t: 270
  • DC Cold Resistance: 0.00458 Ohms
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
  • Color: Blue
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 3,000
