Same model may have multiple batches, images only for reference.

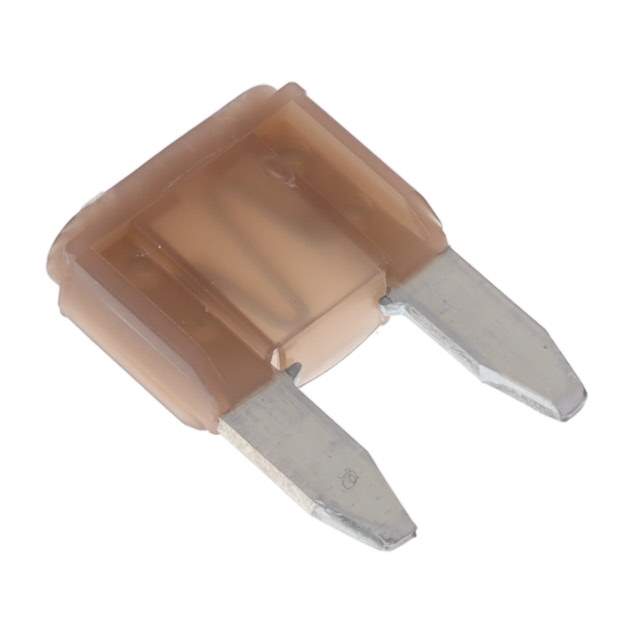

0297005.H Real Image
Same model may have multiple batches, images only for reference.

0297005.H

Part No 0297005.H
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 5A 32VDC BLADE MINI / 5 A AC 32 V DC Fuse Automotive Holder Blade, Miniature
Datasheet
0297005.H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series MINI® 297
Package Bulk
Mounting Type Holder
Fuse Type Automotive
Current Rating (Amps) 5 A
Voltage Rating - DC 32 V
Package / Case Blade, Miniature
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 25
Temperature Range - Operating -40°C ~ 125°C
Color Orange
Dimension 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
DC Cold Resistance 17.75 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names -0297005.H,297005.H
Standard Package 100
Win Source Part Number 1107556-0297005.H
Ultra Librarian 3D Model Ultra Librarian 0297005.H CAD Model

Description

The 1107556-0297005.H is a Miniature Automotive Fuse from MINI® 297 series designed for use in Circuit Protection.

  • Color: Orange
  • Package: Bulk
  • Voltage Rating: 32 V
  • Breaking Capacity @ Rated Voltage: 1kA
  • Melting I2t: 25
  • DC Cold Resistance: 17.75 Ohms
  • Standard Package: 100
  • Mounted Using: Holder
  • Package / Case: Blade, Miniature
  • Temperature Range - Operating: -40°C ~ 125°C
  • Dimension: 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.10.0040
  • Current Rating: 5 A
  • Manufacturer: Littelfuse Inc.
  • Other Names: -0297005.H, 297005.H
  • Agency Approvals: cUL and UL
