Same model may have multiple batches, images only for reference.

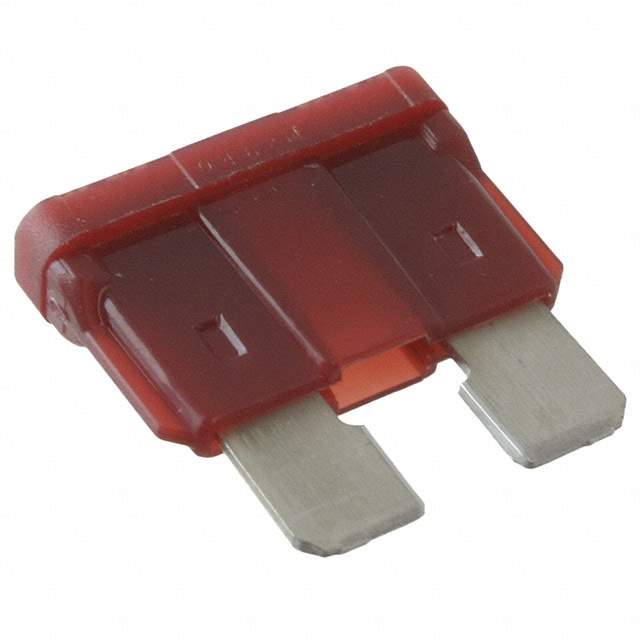

028707.5PXCN Real Image
Same model may have multiple batches, images only for reference.

028707.5PXCN

Part No 028707.5PXCN
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTOMOTIVE 7.5A 32VDC BLADE / ATOF™ Blade Fuse Rated 32V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Automotive
Current Rating (Amps) 7.5A
Voltage Rating - DC 32V
Manufacturer Package Blade, ATO/ATC
Mounting Style Holder
Melting I2t 60
Approvals CSA, UL
Temperature Range - Operating -40°C ~ 105°C
Color Brown
Dimension 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm)
DC Cold Resistance 0.01091 Ohms
Manufacturer Pack Quantity 2,000
MSL Level Not Applicable
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802322-028707.5PXCN
Ultra Librarian 3D Model Ultra Librarian 028707.5PXCN CAD Model

Description

The Littelfuse Inc. 802322-028707.5PXCN is a high popularity electronic component used in automotive applications.

  • Packaging: Bulk
  • Mounting Style: Holder
  • Color: Brown
  • Fuse Type: ATO/ATC Blade Fuse
  • Voltage Rating: 32V
  • Current Rating: 7.5A
  • DC Cold Resistance: 0.01091 Ohms
  • Approvals: CSA, UL
  • Dimension: 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm)
  • Breaking Capacity @ Rated Voltage: -
