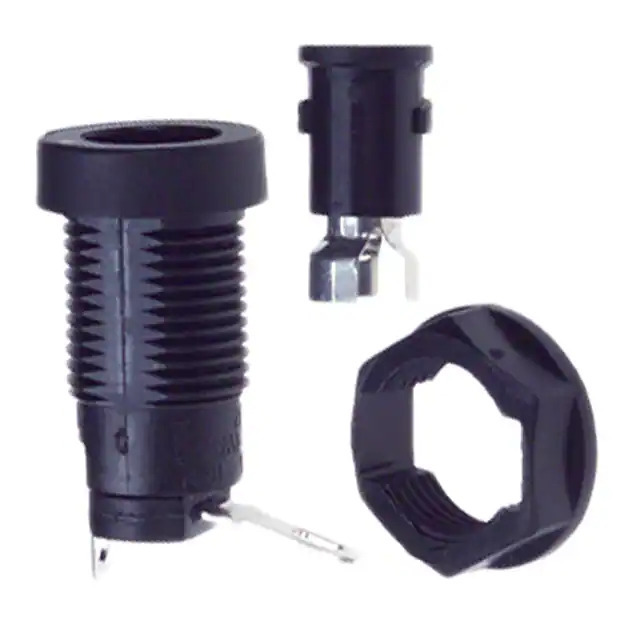

02450001H Littelfuse Inc.
Same model may have multiple batches, images only for reference.

02450001H

Part No 02450001H
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 300V 10A PNL MNT / Fuse Holder 10 A 300V 1 Circuit Cartridge Panel Mount
Datasheet
02450001H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 245
Package Bulk
Product Status Active
Mounting Type Panel Mount
Fuse Size 0.177" Dia x 0.57" L (4.5mm x 14.48mm)
Current Rating (Amps) 10 A
For Use With/Related Products 2AG, 4.5mm x 14.48mm
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 300V
Orientation -
Termination Style Quick Connect - 0.110" (2.8mm)
Contact Material Brass
Contact Finish Tin
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361512-02450001H
Ultra Librarian 3D Model Ultra Librarian 02450001H CAD Model

Description

The 1361512-02450001H is a fuseholder from Littelfuse Inc.

  • Series: 245
  • Mounting: Panel Mounting
  • Current Rating: 10 A
  • Compatible Fuse: 2AG, 4.5mm x 14.48mm
  • Voltage Rating: 300V
  • Termination Style: Quick Connect, 0.110" (2.8mm)
  • Contact Finish: Tin
  • Contact Material: Brass
  • Packaging: Bulk
  • REACH: Unaffected by REACH
  • ECCN: EAR99
