Same model may have multiple batches, images only for reference.

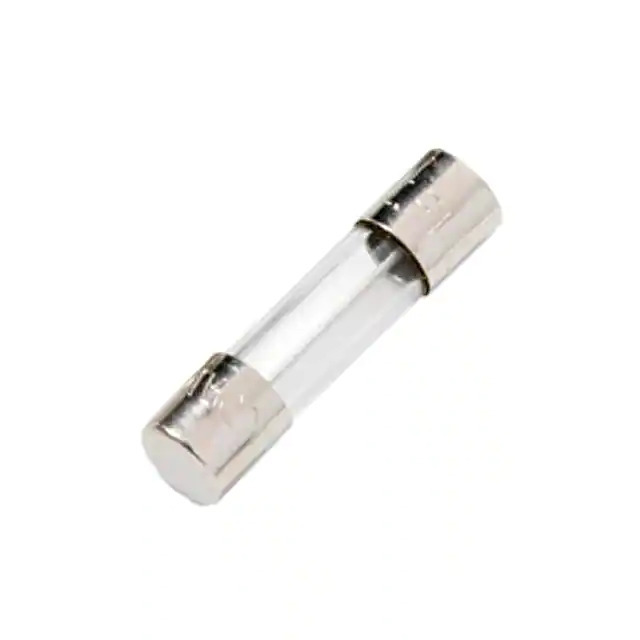

0235005.MXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0235005.MXP

Part No 0235005.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 5A 125VAC 5X20MM / 5 A 125 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Datasheet
0235005.MXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 235
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 5 A
Voltage Rating - AC 125 V
Response Time Fast Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 10kA
Melting I²t 27.41
Approval Agency CE, CSA, KC, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0184 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361374-0235005.MXP
Ultra Librarian 3D Model Ultra Librarian 0235005.MXP CAD Model

Description

The 0235005.MXP is a fuse from Littelfuse Inc.

  • Series: 235
  • Package Size: 5mm x 20mm
  • Current Rating: 5A
  • Voltage Rating: 125V AC
  • Fuse Type: Fast Blow
  • Breaking Capacity: 10kA
  • Size: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Mounting Type: Holder
  • Packaging: Bulk
  • REACH Compliance: Unaffected
  • Approvals: CE, CSA, KC, PSE, and UL
