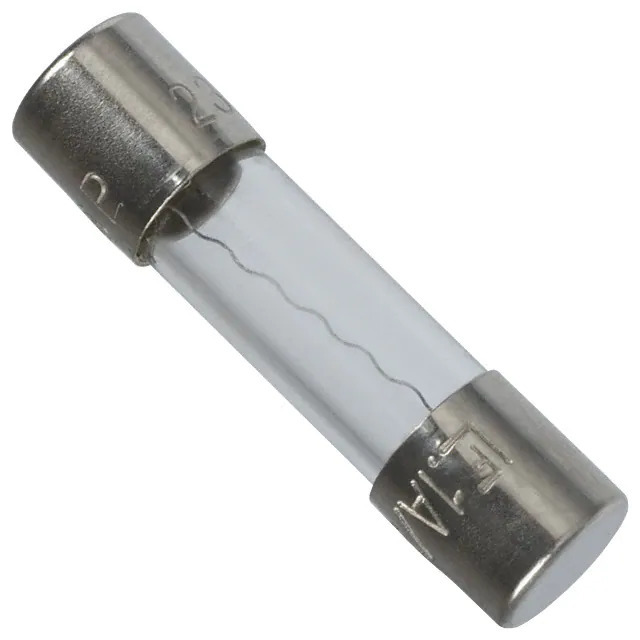

02343.15MXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

02343.15MXP

Part No 02343.15MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 3.15A 250VAC 5X20MM / 3.15 A 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 234
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 3.15 A
Voltage Rating - AC 250 V
Response Time Medium Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 100A
Melting I²t 29.795
Approval Agency CE, CSA, K-MARK, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.038 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361340-02343.15MXP
Ultra Librarian 3D Model Ultra Librarian 02343.15MXP CAD Model

Description

The 02343.15MXP is a circuit protection fuse from Littelfuse Inc.

  • Package: 5mm x 20mm
  • Series: 234
  • Product Status: Active
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Fuse Type: Medium Blow
  • Current Rating: 3.15A
  • Voltage Rating: 250V AC
