Same model may have multiple batches, images only for reference.

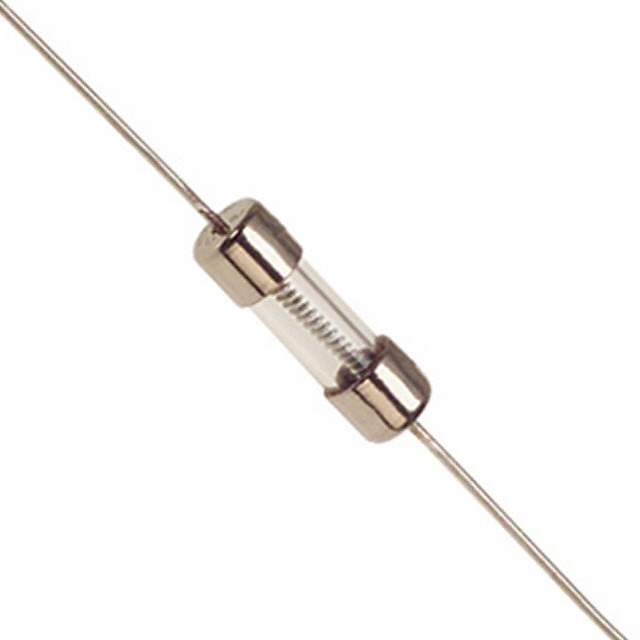

0230.500DRT1P Real Image
Same model may have multiple batches, images only for reference.

0230.500DRT1P

Part No 0230.500DRT1P
Manufacturer Littelfuse Inc.
Catalog Fuses
Description 229/230 Series Lead-Free 2AG, Slo-Blo® Fuse and Indicating Slo-Blo® Fuse | FUSE GLASS 500MA 250VAC 125VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Tape and Reel
Fuse Type Cartridge, Glass
Current Rating (Amps) 500mA
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Slow Blow
Manufacturer Package Cartridge, Non-Standard (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 35A AC, 10kA DC
Melting I2t 1.16
Approvals CE, CSA, UL
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.177" Dia x 0.571" L (4.50mm x 14.50mm)
DC Cold Resistance 0.6935 Ohms
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Win Source Part Number 1120541-0230.500DRT1P
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0230.500DRT1P CAD Model

Description

The Littelfuse Inc. 0230.500DRT1P is a glass cartridge fuse that has a voltage rating of 250V AC and 125V DC.

  • Voltage Rating: 250V AC and 125V DC
  • Current Rating: 500mA
  • Breaking Capacity (AC): 35A
  • Breaking Capacity (DC): 10kA
  • Response Time: Slow blow
  • Function: Protect electronic circuits from overcurrent conditions
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Approvals: CE, CSA, and UL
  • Operating Temperature Range: -55°C to 125°C
