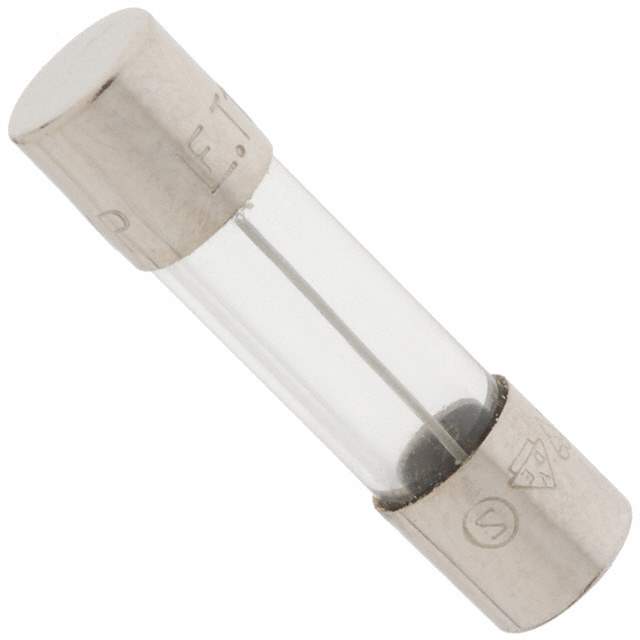

0218015.MXP Real Image
Same model may have multiple batches, images only for reference.

0218015.MXP

Part No 0218015.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description 218 Series, 5 x 20 mm, Time-Lag (Slo-Blo®) Fuse | FUSE GLASS 15A 250VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Glass
Current Rating (Amps) 15A
Voltage Rating - AC 250V
Response Time Slow Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 100A
Melting I2t 1405
Approvals CSA, PSE, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0028 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1120536-0218015.MXP
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0218015.MXP CAD Model

Description

The 1120536-0218015.MXP is a slow-blow glass cartridge fuse from Littelfuse Inc.

  • Voltage Rating: 250V
  • Current Rating: 15A
  • DC Cold Resistance: 0.0028 Ohms
  • Breaking Capacity: 100A @ rated voltage
  • Package: 5mm x 20mm
  • Approvals: CSA, PSE, UL, and VDE
  • Melting I2t: 1405
  • Operating Temperature: -55°C to 125°C
  • Mounting: holder
  • Packaging: bulk
