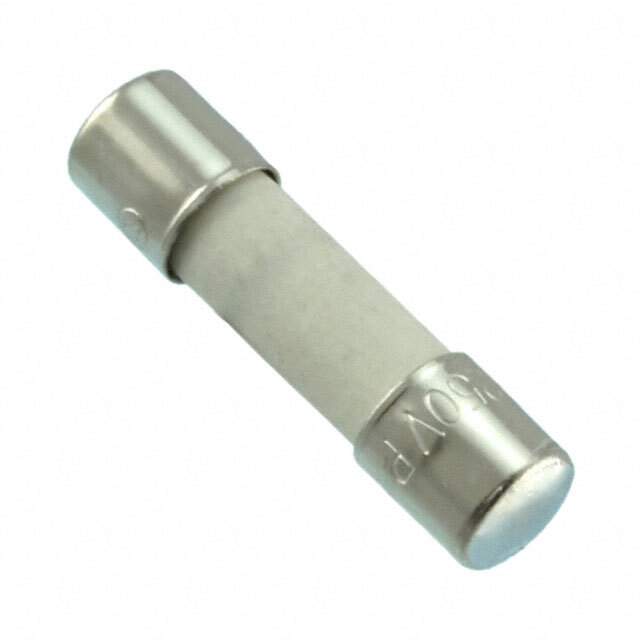

0216.500MXP Real Image
Same model may have multiple batches, images only for reference.

0216.500MXP

Part No 0216.500MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description 216 Series, 5 x 20 mm, Fast-Acting Fuse | FUSE CERAMIC 500MA 250VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 500mA
Voltage Rating - AC 250V
Response Time Fast Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 0.165
Approvals CCC, CE, CSA, SEMKO, UR, VDE
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.866 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1120508-0216.500MXP
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0216.500MXP CAD Model

Description

This Littelfuse Inc. ceramic cartridge fuse is designed to protect electronic circuits from overcurrent conditions.

  • Voltage Rating: 250V AC
  • Response Time: Fast blow
  • Current Rating: 500mA
  • Breaking Capacity: 1.5kA @ Rated Voltage
  • DC Cold Resistance: 0.866 Ohms
  • Operating Temperature Range: -55°C to 125°C
  • Approvals: CCC, CE, CSA, SEMKO, UR, and VDE
  • Packaging: Bulk
  • Manufacturer Pack Quantity: 1,000
  • Mounting: Holder
  • Parts Dimension: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
