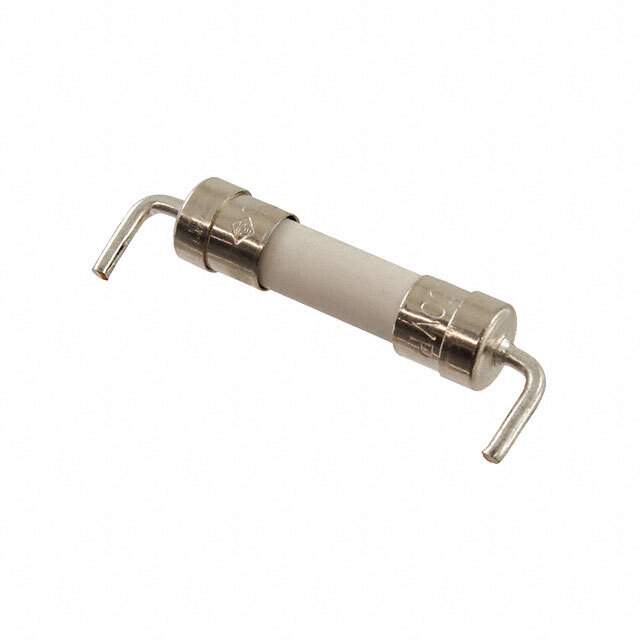

02153.15MXF11P Real Image
Same model may have multiple batches, images only for reference.

02153.15MXF11P

Part No 02153.15MXF11P
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 3.15A 250VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 3.15A
Voltage Rating - AC 250V
Response Time Slow Blow
Manufacturer Package Radial Bend Cylinder
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 43.255
Approvals CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0283 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803590-02153.15MXF11P
Ultra Librarian 3D Model Ultra Librarian 02153.15MXF11P CAD Model

Description

The Littelfuse Inc. 803590-02153.15MXF11P is a slow blow cartridge ceramic fuse with a voltage rating of 250V and a current rating of 3.15A.

  • Voltage Rating: 250V
  • Current Rating: 3.15A
  • DC Cold Resistance: 0.0283 Ohms
  • Approvals: CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
  • Melting I2t: 43.255
  • Operating Temperature: -55°C to 125°C
  • Package: Radial Bend Cylinder
  • Packaging: Bulk
