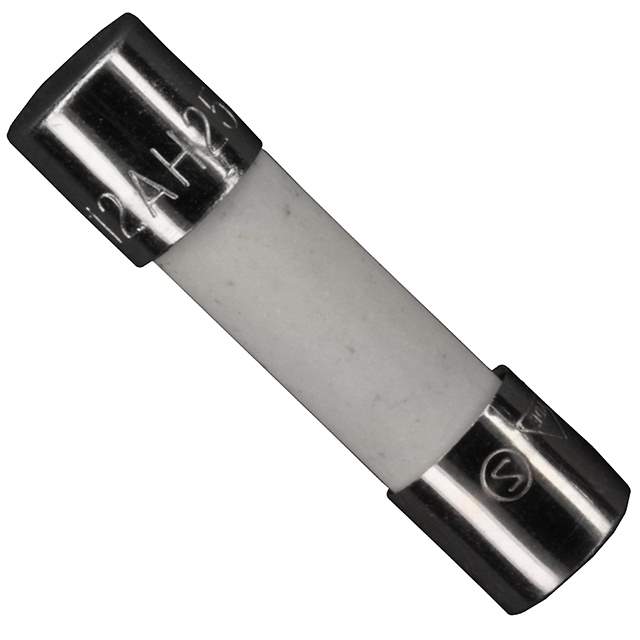

0215005.MXP Real Image
Same model may have multiple batches, images only for reference.

0215005.MXP

Part No 0215005.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 5A 250VAC 5X20MM
Datasheet
0215005.MXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Fuse Type Cartridge, Ceramic
Current Rating 5A
Voltage Rating - AC 250V
Response Time Slow
Mounting Clip / Holder
Breaking Capacity @ Rated Voltage 1.5kA
Nominal Melting - I2t 66.095
Approvals CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.0153 Ohm
Win Source Part Number 1000035-0215005.MXP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0215005.MXP CAD Model

Description

The Littelfuse Inc. 1000035-0215005.MXP is a cartridge ceramic fuse.

  • Voltage Rating: 250V AC
  • Current Rating: 5A
  • Response Time: Slow
  • Breaking Capacity: 1.5kA @ rated voltage
  • Approvals: CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
  • Mounting: Clip or Holder
  • Operating Temperature Range: -55°C to 125°C
  • Supply and Demand Status: Balanced
