Same model may have multiple batches, images only for reference.

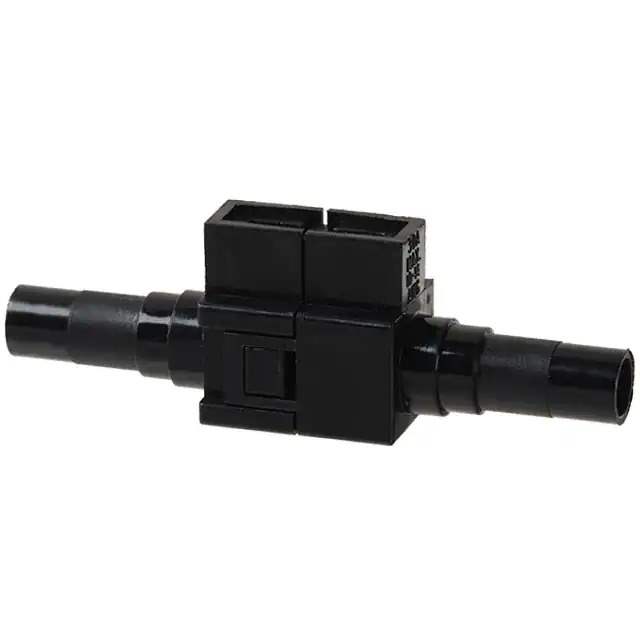

01530002H Real Image
Same model may have multiple batches, images only for reference.

01530002H

Part No 01530002H
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HOLDER BLADE 20A IN LINE
Datasheet
01530002H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 153
Package Bulk
Product Status Active
Mounting Type Free Hanging (In-Line)
Fuse Size 0.433" L x 0.152" W (11.00mm x 3.85mm)
Current Rating (Amps) 20 A
For Use With/Related Products Miniature (ATM)
Fuse Type Blade
Fuseholder Type Holder
Number of Circuits 1
Termination Style Crimp
Contact Material Copper Alloy
Contact Finish Tin
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
California Prop 65 Warning Information
Win Source Part Number 904436-01530002H
Ultra Librarian 3D Model Ultra Librarian 01530002H CAD Model

Description

The 904436-01530002H is a fuse holder designed for use with miniature (ATM) blade fuses.

  • Termination Style: crimp
  • Contact Finish: tin
  • Contact Material: copper alloy
  • Fuse Size: 0.433" length and 0.152" width
  • Mounting: free hanging (in-line)
  • Current Rating: 20A
  • REACH: compliant
  • Manufacturer: Littelfuse Inc.
  • Status: active
