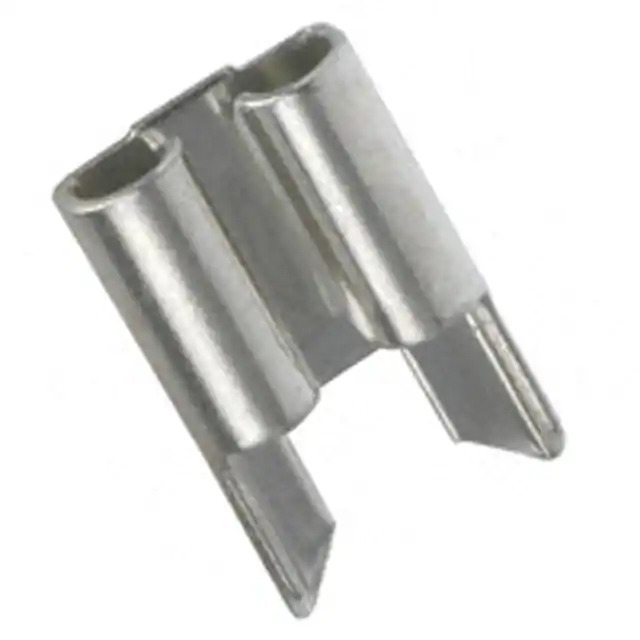

01000057Z Littelfuse Inc.
Same model may have multiple batches, images only for reference.

01000057Z

Part No 01000057Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE CLIP BLADE 125V 15A PCB / Fuse Clip 15 A 125V 1 Circuit Blade Through Hole
Datasheet
01000057Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 100_57
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Size -
Current Rating (Amps) 15 A
For Use With/Related Products ATC, ATO
Fuse Type Blade
Fuseholder Type Clip
Number of Circuits 1
Voltage 125V
Orientation Vertical
Termination Style PC Pin
Contact Material Spring Brass
Contact Finish Tin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361507-01000057Z
Ultra Librarian 3D Model Ultra Librarian 01000057Z CAD Model

Description

The Littelfuse Inc. 100_57 is a vertical mount fuseholder designed for use with ATC and ATO fuses.

  • Current Rating: 15A
  • Voltage Rating: 125V
  • Contact Finish: Tin
  • Contact Material: Spring Brass
  • Mounting: Through Hole
