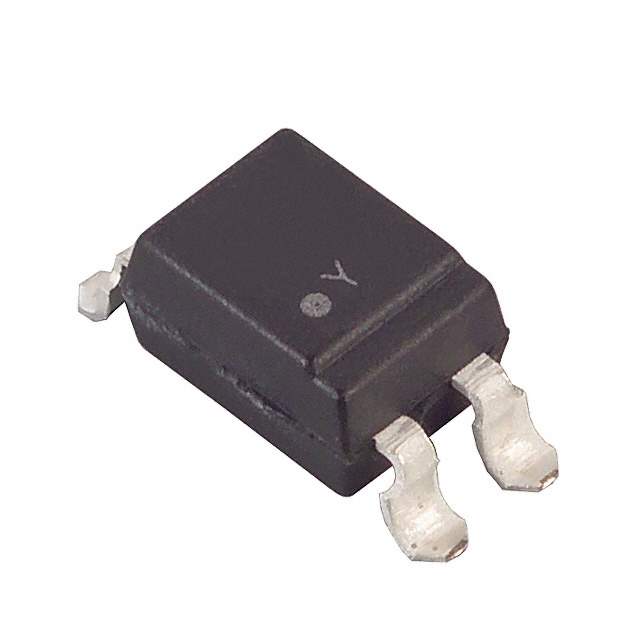

LTV-815S-TA1 Real Image
Same model may have multiple batches, images only for reference.

LTV-815S-TA1

Part No LTV-815S-TA1
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV DARLINGTON 4-SMD
Datasheet
LTV-815S-TA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 600% @ 1mA
Maximum DC Current Transfer Ratio 7500% @ 1mA
Rise and Fall Time 60μs, 53μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 35V
Channel Output Current 80mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1V
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 072702-LTV-815S-TA1
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Signal Processing
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian LTV-815S-TA1 CAD Model

Description

The Lite-On Inc. LTV-815S-TA1 is an isolator integrated circuit (IC) with a forward voltage of 1.2V and an isolation voltage of 5000Vrms.

  • Package: 4-SMD
  • Minimum DC Current Transfer Ratio: 600% @ 1mA
  • Maximum DC Current Transfer Ratio: 7500% @ 1mA
  • Channel Output Current: 80mA
  • Continuous Forward Current: 50mA
  • Rise Time: 60μs
  • Fall Time: 53μs
  • Operating Temperature Range: -30°C to 100°C
  • Applications: Signal Processing
