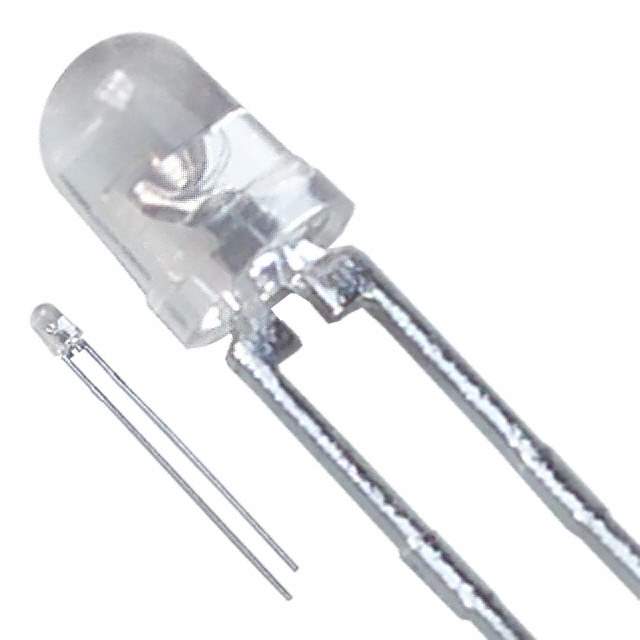

LTL-4256N Real Image
Same model may have multiple batches, images only for reference.

LTL-4256N

Part No LTL-4256N
Manufacturer Lite-On Inc.
Catalog Optics - LEDs - Light Pipes
Description LED Uni-Color Yellow 585nm 2-Pin T-1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package T
Color Yellow
Depth 3.2 mm
Diameter 3 mm
Dominant Wavelength 588 nm
Forward Current 20 mA
Forward Voltage 2.1 V
Height 5.85 mm
Illumination Color Yellow
Lead Free Yes
Length 3.2 mm
Lens Color Colorless
Lens Style Clear
Lens Transparency Clear
Luminous Intensity 40 mcd
Maximum Operating Temperature 100 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Packaging Bulk
Power Dissipation 60 mW
Radiation Hardening No
Reverse Voltage 5 V
RoHS Compliant
Schedule B 8541402000, 8541402000
Test Current 10 mA
Viewing Angle 45 °
Wavelength 585 nm
Win Source Part Number 1068395-LTL-4256N
Categories Optics - LEDs - Light Pipes
Manufacturer Lite-On Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LTL-4256N CAD Model

Description

The Lite-On Inc. LTL-4256N is a yellow color SMD LED with a length of 3.2 mm and a height of 5.85 mm.

  • Color: Yellow
  • Type: SMD LED
  • Length: 3.2 mm
  • Height: 5.85 mm
  • Luminous Intensity: 40 mcd
  • Forward Voltage: 2.1 V
  • Forward Current: 20 mA
  • Reverse Voltage: 5 V
  • Package: T
  • Viewing Angle: 45 °
  • Supply and Demand Status: Shortage
  • Maximum Operating Temperature: 100 °C
  • Minimum Operating Temperature: -55 °C
