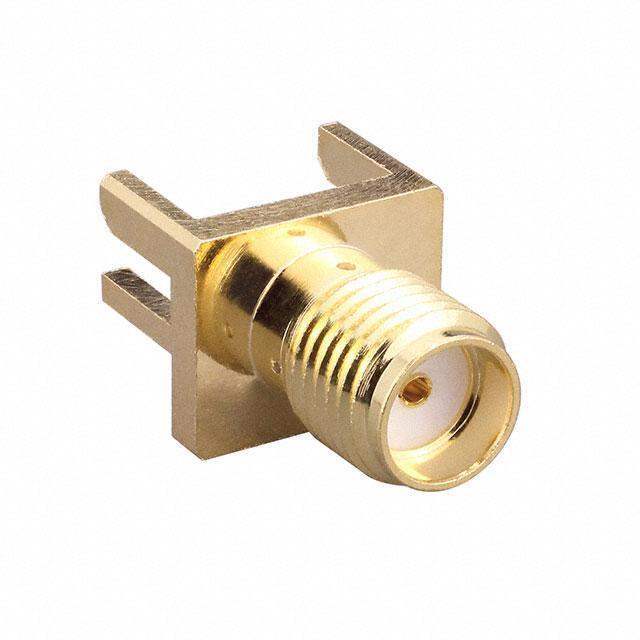

CONSMA020.062-G Linx Technologies Inc.
Same model may have multiple batches, images only for reference.

CONSMA020.062-G

Part No CONSMA020.062-G
Manufacturer Linx Technologies Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA FML EDGE MNT 0.062" PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201160-CONSMA020.062-G
Manufacturer Linx Technologies Inc.
Category Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Package Tray
Product Status Active
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Ultra Librarian 3D Model Ultra Librarian CONSMA020.062-G CAD Model

Description

The RF coaxial connector assembly from Linx Technologies Inc. is a receptacle female socket connector.

  • Connector Type: Receptacle
  • Gender: Female
  • Packaging: Tray
  • Contact Termination: Solder
  • Connector Style: SMA
  • Housing Color: Gold
  • Body Material: Brass
  • Shield Termination: Soldered
  • Center Contact Material: Beryllium Copper
