Same model may have multiple batches, images only for reference.

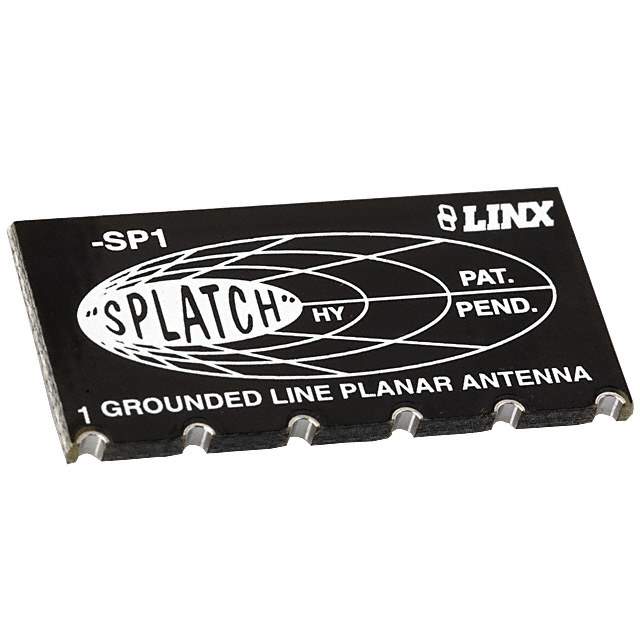

ANT-418-SP Real Image
Same model may have multiple batches, images only for reference.

ANT-418-SP

Part No ANT-418-SP
Manufacturer Linx Technologies Inc.
Catalog RF Antennas
Description ANTENNA 418MHZ PLANAR (SMT) / Direct PCB grounded-line Antenna
Datasheet
ANT-418-SP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Linx Technologies Inc.
Series Splatch
Packaging Tube
Frequency Group UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) 418MHz
Frequency Range 415MHz ~ 423MHz
Antenna Type Chip
Number of Bands 1
VSWR 1.9
Gain -8dBi
Termination Solder
Mounting SMD
Height (Maximum) 0.059" (1.50mm)
Win Source Part Number 768532-ANT-418-SP
Popularity Medium
Supply and Demand Status Balance
Family Name ANT-418-SP
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ANT-418-SP CAD Model

Description

The Linx Technologies Inc. 768532-ANT-418-SP is a chip antenna with a frequency range of 415MHz ~ 423MHz and a frequency (center/band) of 418MHz.

  • VSWR: 1.9
  • Gain: -8dBi
  • Frequency Group: UHF (300 MHz ~ 1 GHz)
  • Termination: Solder
  • Package: Tube
  • Mounting: SMD
  • Height: 0.059" (1.50mm)
  • Series: Splatch
