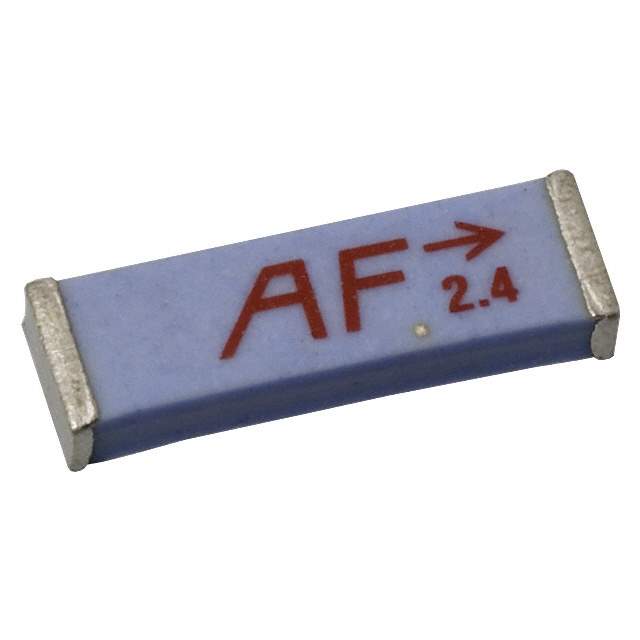

Same model may have multiple batches, images only for reference.

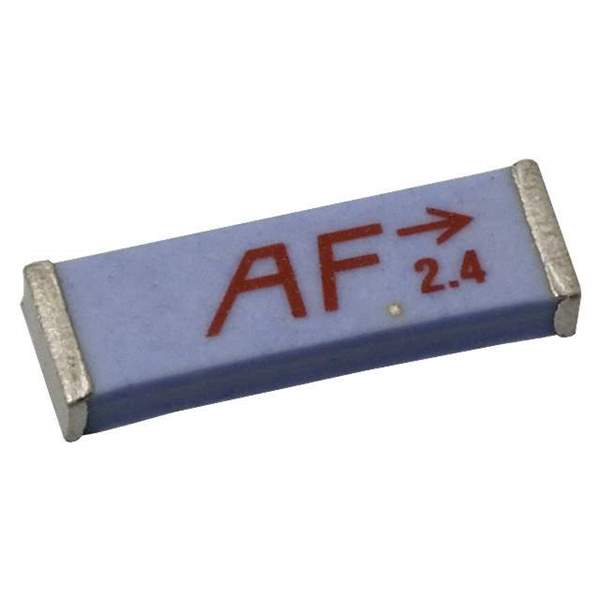

ANT-2.45-CHP-T Real Image
Same model may have multiple batches, images only for reference.

ANT-2.45-CHP-T

Part No ANT-2.45-CHP-T
Manufacturer Linx Technologies Inc.
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD / ULTRA COMPACT CHIP ANTENNA DATA GUIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Linx Technologies Inc.
Packaging Reel
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.36GHz ~ 2.54GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Gain 0.5dBi
Power - Max 3W
Termination Solder
Mounting Style SMD
Height (Maximum) 0.039" (1.00mm)
Applications Bluetooth, Thread, Wi-Fi, Zigbee
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801033-ANT-2.45-CHP-T
Ultra Librarian 3D Model Ultra Librarian ANT-2.45-CHP-T CAD Model

Description

The Linx Technologies Inc. 801033-ANT-2.45-CHP-T is a chip antenna.

  • Frequency Range: 2.36GHz to 2.54GHz
  • Applications: Bluetooth, Thread, Wi-Fi, Zigbee
  • Maximum Power Rating: 3W
  • Gain: 0.5dBi
  • VSWR: 2
  • Antenna Type: Chip
  • Frequency Group: UHF (2GHz ~ 3GHz)
  • Frequency (Center/Band): 2.4GHz
  • Packaging: Reel
  • Mounting: SMD
  • Termination: Solder
  • RF Family/Standard: 802.15.4, Bluetooth, WiFi
  • Height: 0.039" (1.00mm)
  • Supply and Demand Status: Sufficient
  • Manufacturer Pack Quantity: 1,500
  • MSL Level: 1 (Unlimited)
