The LTM8055EY#PBF is a high-performance, versatile micro-module (µModule) power converter from Linear Technology, designed to simplify the process of power supply design. It is a complete system-in-package (SiP) that includes a switching regulator, inductor, and all support components in a compact package, providing an efficient and space-saving solution for a wide range of applications.

Key Features

• Wide Input Voltage Range: The LTM8055EY#PBF operates over a wide input voltage range of 6V to 36V, making it suitable for various supply sources, from batteries to industrial supplies.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 24V, providing flexibility for powering different types of loads.
• High Output Current: This µModule can deliver up to 8.5A of continuous output current, making it capable of powering high-current applications.
• High Efficiency: With its advanced design, the LTM8055EY#PBF achieves high efficiency, which reduces power loss and heat generation.
• Integrated Components: The integration of the inductor, power switches, and other passive components into a single package simplifies the design and reduces the PCB footprint.
• Thermal Performance: The package is designed for optimal thermal performance, ensuring reliable operation over a wide temperature range.
• Multiple Protection Features: It includes overvoltage, overcurrent, and overtemperature protection for improved system safety and reliability.

Applications

The LTM8055EY#PBF is ideal for use in a diverse array of applications, such as:

• Telecommunications and Networking Equipment
• Industrial Controls and Robotics
• Automotive Electronics
• Data Storage and Computing
• Medical Equipment
• Test and Measurement Systems

Product Specifications

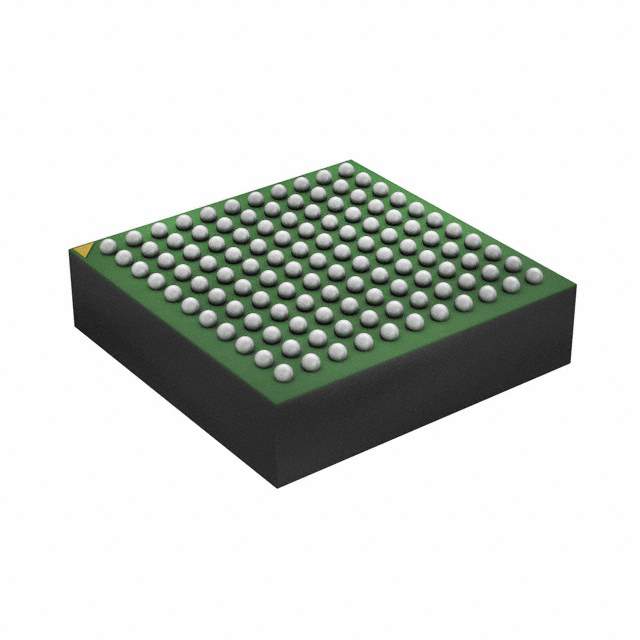

Attribute Value Part Number LTM8055EY#PBF Manufacturer Linear Technology Input Voltage Range 6V to 36V Output Voltage Range 0.8V to 24V Output Current Up to 8.5A Package BGA (Ball Grid Array)

With its robust design and comprehensive feature set, the LTM8055EY#PBF from Linear Technology is a reliable and efficient solution for a wide range of power conversion needs.
