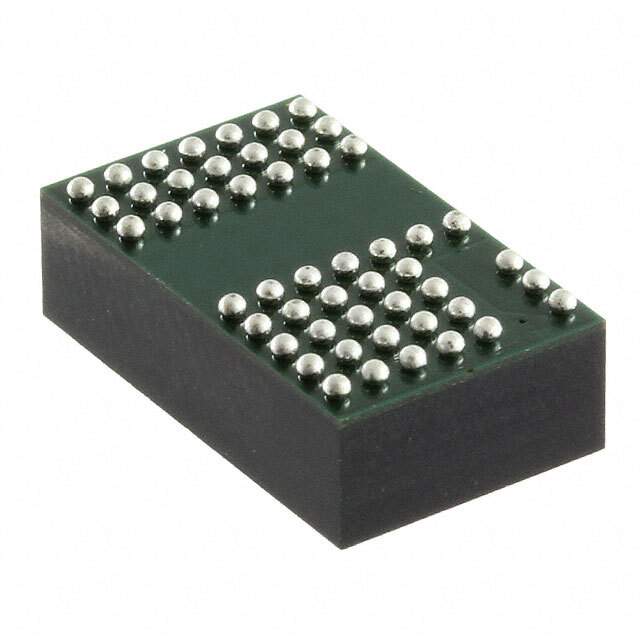

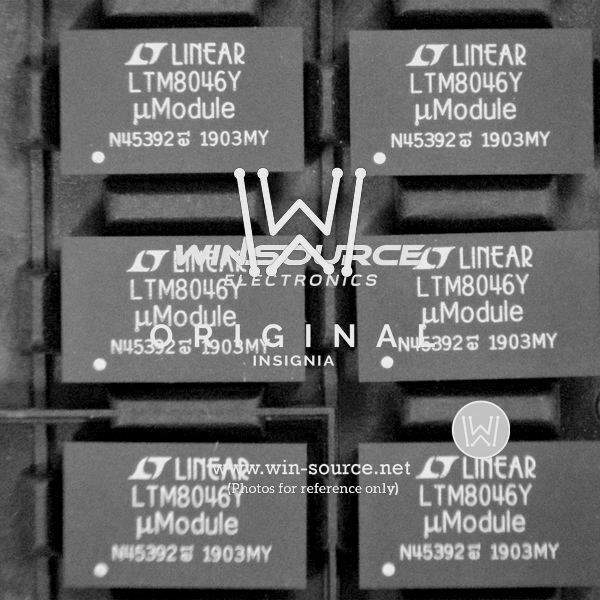

The LTM8046IY#PBF is a high-performance μModule (micro-module) LED driver from Linear Technology, designed to simplify the process of driving LEDs over a wide input voltage range. This versatile and compact component is ideal for a variety of applications, including industrial, automotive, and architectural lighting, as well as display backlighting.

Key Features

• Adjustable Output Current: The LTM8046IY#PBF allows users to set the output current to drive LEDs, which can be adjusted up to 1A.
• Wide Input Voltage Range: It operates over a 4V to 36V input voltage range, making it suitable for use in systems with varying supply voltages.
• Integrated Boost Converter: The device includes an integrated boost converter, enabling it to provide a constant current output even when the input voltage is below the LED voltage.
• High Efficiency: Its high efficiency helps to minimize heat generation, thereby reducing the need for extensive heat sinking or thermal management.
• PWM Dimming: The LTM8046IY#PBF supports PWM dimming, offering precise control over LED brightness for various lighting conditions.
• Compact Design: The μModule design integrates the inductor, power switches, and control circuitry within a compact package, simplifying the design and reducing the PCB footprint.
• Robust Protection Features: It includes features such as open LED protection, short-circuit protection, and thermal shutdown to ensure reliable operation under adverse conditions.

Applications

The LTM8046IY#PBF's robust design and flexible features make it an ideal choice for a range of applications:

• Industrial lighting systems
• Automotive headlights and interior lights
• Architectural lighting
• General-purpose LED illumination
• Display backlighting for monitors, TVs, and handheld devices

With its comprehensive feature set and ease of use, the LTM8046IY#PBF from Linear Technology stands out as a top choice for designers looking to create efficient, reliable, and high-quality LED lighting solutions.
