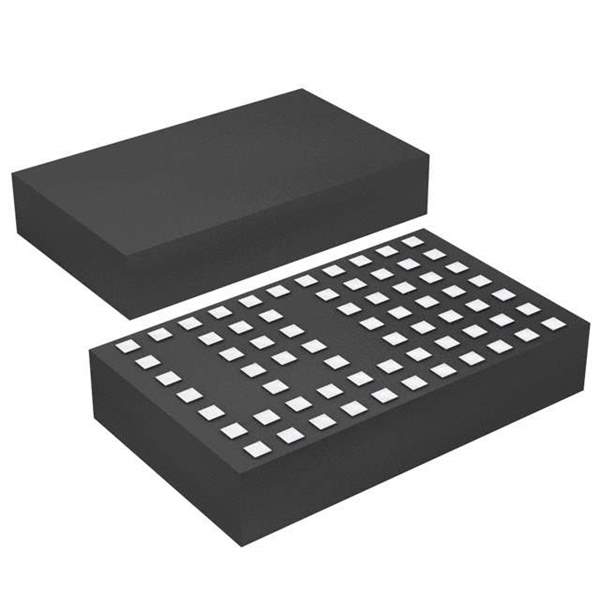

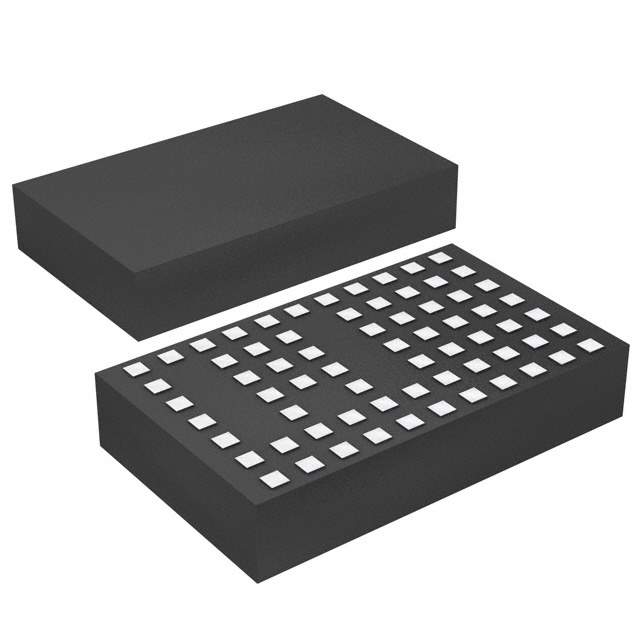

Product Overview: LTM4608AEV#PBF

The LTM4608AEV#PBF is a high-performance, µModule® (micromodule) regulator from Linear Technology, designed to deliver precision, efficiency, and versatility in a compact package. This advanced power solution integrates the DC/DC controller, power switches, inductor, and all support components into a single package, significantly simplifying the design and layout process for engineers.

Key Features

• High Efficiency: The LTM4608AEV#PBF features a high-efficiency design, capable of converting input voltages ranging from 4.5V to 20V to a lower, regulated output voltage adjustable from 0.6V to 5V, with up to 8A of continuous output current.
• Integrated Components: With an inductor, MOSFETs, a DC/DC controller, and compensation circuitry all integrated into one package, this regulator simplifies the design process and reduces external component count.
• Thermal Performance: The product is designed with thermal management in mind, featuring excellent heat dissipation capabilities, which helps maintain performance even under high load conditions.
• Output Voltage Tracking: The LTM4608AEV#PBF supports safe sequencing and ramp-up of the output voltage, which is essential for sensitive applications requiring precise power-up sequences.
• Robust Protection Features: It includes overvoltage, overcurrent, and overtemperature protection, safeguarding the module and connected components from potential damage.

Applications

The versatility of the LTM4608AEV#PBF makes it suitable for a wide array of applications, including but not limited to:

• Telecommunications infrastructure
• Networking equipment
• Industrial systems
• Medical equipment
• High-density distributed power systems

Reliability and Quality

Linear Technology ensures that the LTM4608AEV#PBF meets rigorous standards for reliability and performance. The module is encapsulated to provide enhanced environmental and thermal protection, extending its lifespan and reliability in demanding applications.

Easy Implementation

The compact form factor and minimal external component requirements make the LTM4608AEV#PBF an ideal choice for designers looking to reduce development time and streamline their power supply design, without compromising on power efficiency or features.
