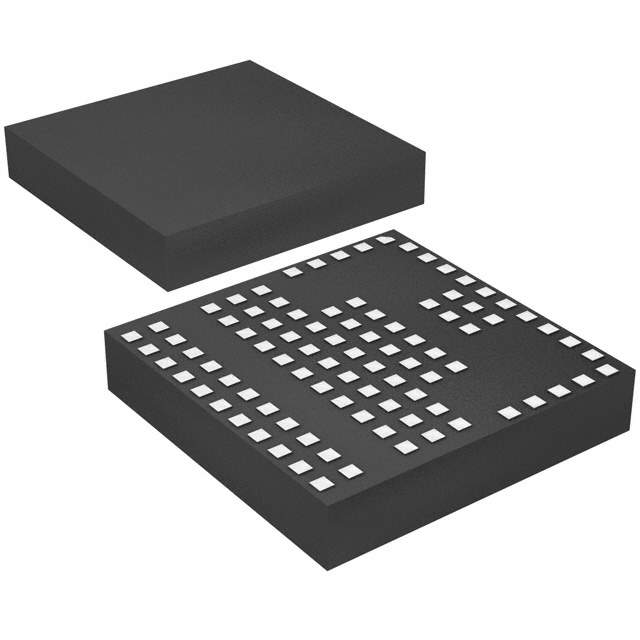

The LTM4602HVIV#PBF is a high-performance, easy-to-use power module from Linear Technology, designed for a wide range of applications requiring efficient power conversion. This module is part of Linear Technology's µModule (micromodule) family, which integrates the DC/DC controller, power switches, inductor, and all support components into a compact, surface-mount package. This integration simplifies design and reduces board space requirements, making it an ideal solution for space-constrained applications.

Featuring a wide input voltage range of 4.5V to 28V and an adjustable output voltage range from 0.6V to 5V, the LTM4602HVIV#PBF can deliver up to 10A of continuous output current, making it suitable for a variety of applications including industrial, automotive, and telecommunications systems. The high voltage version (HV) extends the input voltage capability up to 20V to 28V, providing additional flexibility for systems with higher input voltages.

The LTM4602HVIV#PBF offers excellent thermal performance due to its over-molded and substrate-enhanced design. This feature allows for efficient heat dissipation and operation at full current rating over a wide temperature range without the need for airflow or additional heat sinking. The module is also equipped with a range of protective features such as overvoltage, overcurrent, and overtemperature protection to ensure reliable operation under adverse conditions.

For precision voltage regulation, the device includes remote sensing capability, which compensates for voltage drops in the PCB traces, ensuring accurate voltage delivery to the load. The LTM4602HVIV#PBF also provides programmable soft-start, tracking, and margining features, which can be used to control the startup sequence and output voltage during system ramp-up and ramp-down.

With its robust feature set and high level of integration, the LTM4602HVIV#PBF is an excellent choice for designers looking to reduce design complexity and accelerate time-to-market, while still achieving high efficiency and reliability in their power supply designs.
