The LTM4602EV#PBF is a complete, high-efficiency, DC/DC step-down power supply module from Linear Technology. Designed to deliver robust performance in a compact package, this µModule (micro-module) regulator integrates the inductor, MOSFETs, DC/DC controller, and compensation circuitry into a single device. This integration simplifies the design process for engineers and ensures optimized system performance.

Key Features

• Wide Input Voltage Range: The module operates efficiently with an input voltage range from 4.5V to 20V, accommodating a variety of power sources and applications.
• Adjustable Output Voltage: Its output voltage can be precisely adjusted from 0.6V to 5V, making it suitable for powering a broad range of devices, including FPGAs, ASICs, microprocessors, and DSPs.
• High Output Current: Capable of delivering up to 10A of continuous output current, the LTM4602EV#PBF is ideal for high-power applications.
• High Efficiency: With its advanced design and high-quality components, it boasts a high efficiency, reducing power losses and improving system reliability.

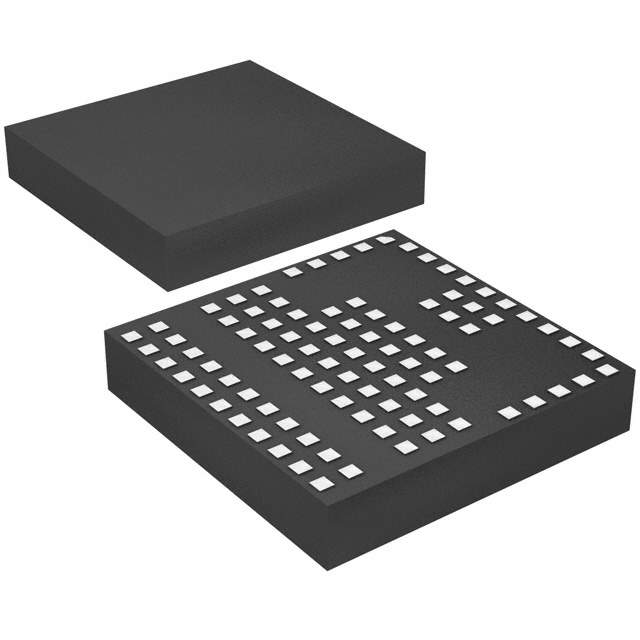

• Compact Design: The product comes in a small (15mm x 15mm x 2.82mm) surface-mount LGA package, saving valuable board space and reducing overall system size.
• Thermal Performance: Excellent thermal performance is ensured by its over-molded construction, which enhances heat dissipation and allows for operation in high-temperature environments.

Applications

• Telecommunications Infrastructure
• Networking Equipment
• Industrial Systems
• Medical Equipment
• Aerospace and Defense

The LTM4602EV#PBF is a testament to Linear Technology's commitment to delivering high-performance power solutions that meet the needs of today's advanced electronic systems. With its easy-to-use design, extensive features, and reliable performance, this power module is an excellent choice for designers looking to streamline their power supply design with a trusted and efficient solution.
