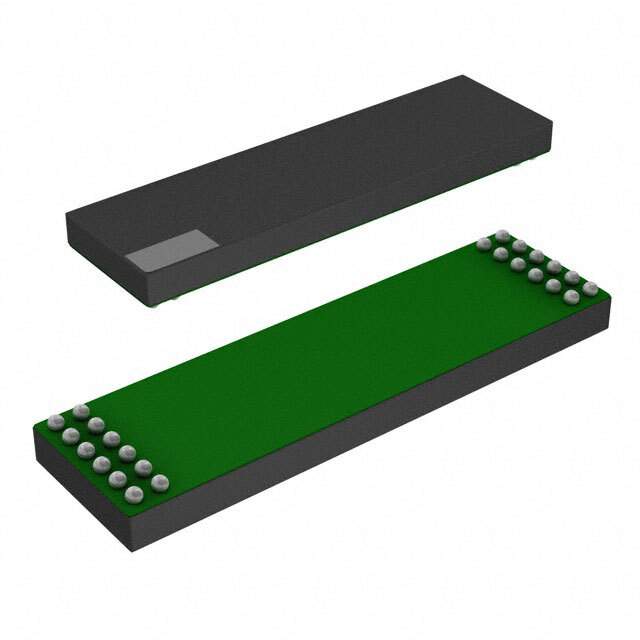

Product Overview: LTM2894CY#PBF

The LTM2894CY#PBF is an advanced isolated USB transceiver module designed and manufactured by Linear Technology, a brand renowned for its high-performance analog integrated circuits. This product is specifically engineered to provide robust isolation for USB 2.0 full speed and low speed interfaces, making it an ideal solution for applications that require reliable communication with strong immunity to common mode noise and electrical interference.

Key Features

• USB Isolation: The LTM2894CY#PBF offers up to 7500V RMS isolation for 1 minute, ensuring the integrity of data transmission even in electrically noisy environments.
• Data Rate: It supports USB 2.0 full-speed (12Mbps) and low-speed (1.5Mbps) operation, enabling it to cater to a wide range of USB-based applications.
• Integrated Isolated Power: This product includes an integrated, isolated DC/DC converter, providing 5V output from a single 5V input, simplifying the power supply design for isolated USB interfaces.
• Robust ESD Protection: It features ±15kV ESD protection on the USB transceiver interface, offering an extra layer of protection against electrostatic discharge events.
• Compact Package: The LTM2894CY#PBF comes in a compact 15mm x 11.25mm surface-mount LGA package, making it suitable for space-constrained applications.
• Temperature Range: It is designed to operate over the full industrial temperature range of -40°C to 85°C, ensuring reliable performance in a variety of environmental conditions.

Applications

The LTM2894CY#PBF is versatile and can be used in a range of applications where isolation is critical. These include:

• Industrial Control Systems
• Medical Equipment
• Test and Measurement Devices
• Isolated USB Hubs
• Ground Loop Elimination

Quality and Reliability

Linear Technology's commitment to quality ensures that the LTM2894CY#PBF meets the highest standards of reliability and performance. This product is RoHS compliant and is designed to meet the stringent requirements of industrial and medical applications, where consistent operation and long-term durability are paramount.

With its advanced features and robust design, the LTM2894CY#PBF from Linear Technology stands out as a superior choice for any system designer seeking to incorporate isolated USB communications with confidence.
