The LTC6803HG-3#PBF is a high-performance battery stack monitor designed by Linear Technology, now part of Analog Devices, to address the needs of modern battery management systems. This sophisticated integrated circuit is capable of monitoring up to 12 series-connected battery cells for voltage levels, providing essential data for ensuring the safety, longevity, and efficiency of battery packs, especially in electric vehicles and energy storage systems.

Key Features:

• High Voltage Capability: Capable of monitoring up to 12 series-connected cells with a total input voltage up to 60V, making it suitable for high voltage battery management applications.
• Precision Measurement: Offers a measurement accuracy of ±0.25% for cell voltages, ensuring precise battery monitoring which is crucial for balanced charging and discharging.
• Multiplexed Design: The LTC6803HG-3#PBF features a multiplexed architecture, allowing multiple devices to be connected in series for monitoring of more than 12 cells, which is essential for large battery stacks.
• Robust Communication: Utilizes a robust, high-speed SPI interface for communication with a microcontroller, ensuring reliable data transfer even in noisy environments.
• Built-in Safety Features: Includes overvoltage and undervoltage lockout, which protects the circuit and the battery pack from extreme voltage conditions.
• Temperature Range: Operates over an industrial temperature range from -40°C to 125°C, making it suitable for harsh environments.

Applications:

• Electric and Hybrid Electric Vehicles (EV/HEV)
• Backup Power Systems
• Energy Storage Systems
• Uninterruptible Power Supplies (UPS)

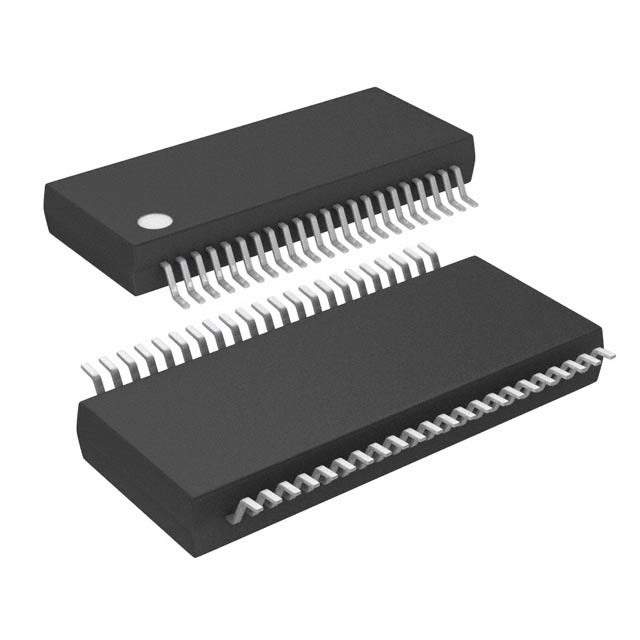

The LTC6803HG-3#PBF is encased in a compact, 44-lead SSOP package, which is optimized for space-constrained applications. As battery systems become increasingly complex, this battery stack monitor stands out for its ability to deliver precise, real-time data, ensuring optimal performance and safety of the entire battery system. It is an indispensable component for designers looking to create advanced battery management solutions.
