Product Overview: LTC6091IUFE#PBF

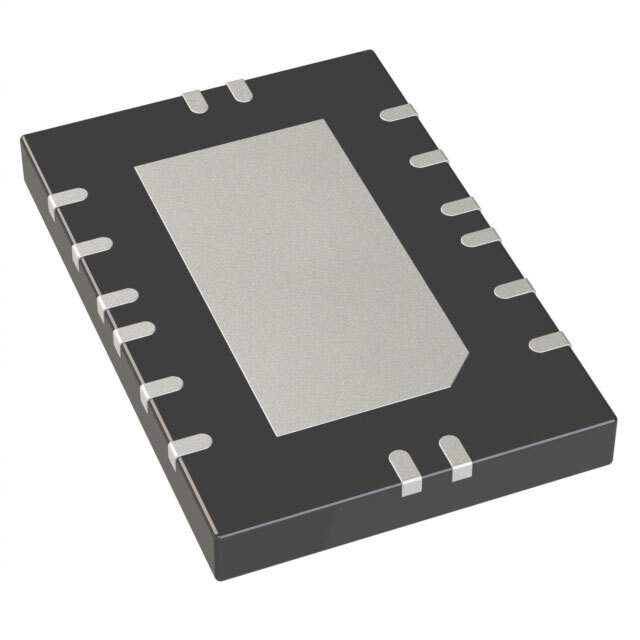

The LTC6091IUFE#PBF is a high voltage, precision operational amplifier designed by Linear Technology, which is renowned for its robust performance in demanding applications. This operational amplifier (op-amp) is capable of operating with a supply voltage range of up to 140V, which makes it an ideal choice for high voltage systems that require precise signal conditioning. The device comes in a compact 16-lead QFN package, ensuring a small footprint on the circuit board while providing excellent thermal performance.

Key Features

• High Voltage Operation: The LTC6091 can operate with a single supply of up to 140V or dual supplies of up to ±70V, providing the flexibility needed for a variety of high voltage applications.
• Precision Performance: With a low input offset voltage and low noise, the LTC6091 delivers accurate signal amplification, making it suitable for precision instrumentation, data acquisition systems, and medical applications.
• Robust Output Drive: The device is capable of delivering output currents up to 10mA, which allows it to drive heavy loads or to be used in power-intensive applications.
• Thermal Protection: The LTC6091IUFE#PBF features an internal thermal shutdown mechanism that protects the device from overheating, ensuring reliable operation under various conditions.
• Extended Temperature Range: This op-amp is designed to operate over an industrial temperature range, making it suitable for harsh environments.

Applications

The LTC6091IUFE#PBF is versatile and can be used in a wide range of applications. Some of the common applications include:

• High Voltage Instrumentation
• Precision Medical Devices
• Automatic Test Equipment
• Piezoelectric Drivers
• Industrial Process Controls
• Electrostatic Transducers and Sensors

Linear Technology's commitment to quality and performance is evident in the LTC6091IUFE#PBF operational amplifier. Its combination of high voltage capability, precision, and robustness makes it an excellent choice for engineers and designers who require a reliable op-amp for their high voltage applications.
