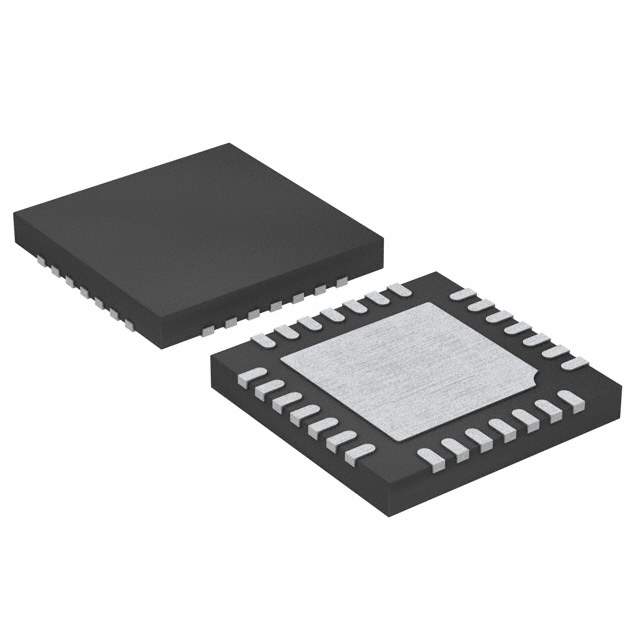

Linear Technology LTC4066EPF#TRPBF USB Power Manager and Li-Ion/Polymer Battery Charger

The Linear Technology LTC4066EPF#TRPBF is a highly integrated power management and battery charger IC designed for single-cell lithium-ion or lithium-polymer batteries. This compact solution is ideal for portable USB-powered devices, providing efficient charging and power management in a single package. With its advanced features and robust design, the LTC4066EPF#TRPBF ensures safe and reliable operation for a variety of applications, including smartphones, portable media players, and other USB-enabled devices.

Key Features:

• Integrated USB Power Manager: The LTC4066EPF#TRPBF efficiently manages power from a USB port, ensuring optimal charging and system operation even with limited USB power available.
• Programmable Charge Current: Users can program the charge current from 100mA up to 1A according to the power requirements of the specific battery and application, providing flexibility and improved charging efficiency.
• Automatic Load Prioritization: The IC intelligently prioritizes system load over battery charging, ensuring that the device remains operational even when the battery is low and the USB power is limited.
• Thermal Regulation: To protect the battery and circuitry, the LTC4066EPF#TRPBF includes thermal regulation that reduces charge current if the die temperature exceeds a preset threshold.
• Prescriptive Charge Termination: The IC terminates charging based on a number of conditions, including charge current falling to 1/10th of the programmed value, ensuring a full charge and enhancing battery longevity.
• Automatic Recharge: Once the battery voltage falls below a preset recharge threshold, the LTC4066EPF#TRPBF automatically initiates a new charging cycle, keeping the device ready for use.

Protection Features:

• Overvoltage Protection: The IC prevents damage to the battery and the system by shutting down the path to the battery if the input voltage exceeds a safe threshold.
• Undervoltage Lockout: It also includes an undervoltage lockout feature that disables the battery charger if the USB supply falls below a minimum voltage, ensuring stable operation.
• Short-Circuit Protection: In the event of a short circuit, the LTC4066EPF#TRPBF protects the device by immediately reducing the charge current to a safe level.

Overall, the LTC4066EPF#TRPBF from Linear Technology is a versatile and reliable solution for managing power and charging batteries in USB-powered portable devices. Its comprehensive feature set ensures safe and efficient operation, making it an excellent choice for designers looking to enhance the user experience of their products.
