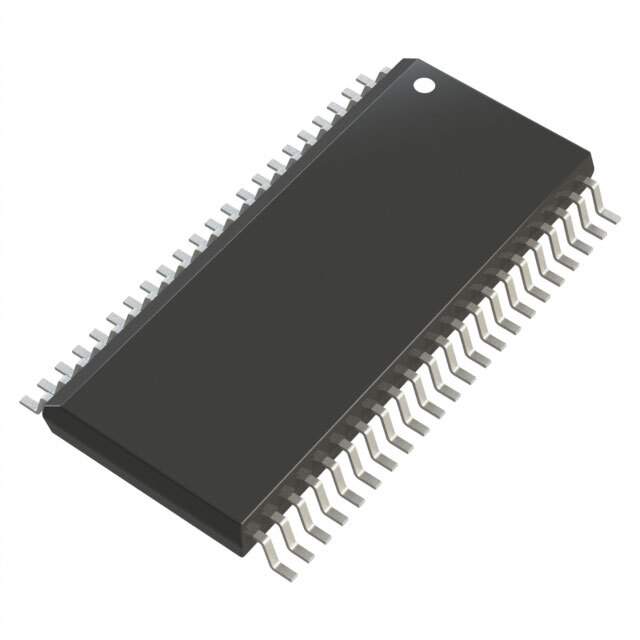

Product Overview: LTC2704IGW-16

The LTC2704IGW-16 is a cutting-edge quad 16-bit digital-to-analog converter (DAC) from Linear Technology, designed to meet the high precision demands of advanced industrial, automotive, and communication systems. With its robust architecture and high-performance capabilities, this component sets the standard for reliability and accuracy in complex electronic applications.

Key Features

• High Resolution: The LTC2704IGW-16 boasts a 16-bit resolution, providing fine-grain output with a high degree of precision.
• Quad DAC Channels: Equipped with four independent DAC channels, it allows for simultaneous updates and control of multiple analog outputs.
• SoftSpan™ Output Ranges: The device offers multiple selectable output ranges, including unipolar and bipolar modes, enhancing its versatility in different circuit configurations.
• Serial Interface: The inclusion of a serial interface facilitates easy communication with microcontrollers or digital systems, simplifying integration into a variety of designs.
• Low Glitch Impulse: The low glitch impulse feature ensures minimal disturbance in the output signal during state changes, which is critical for sensitive applications.

Performance Specifications

• Accuracy: The LTC2704IGW-16 provides excellent accuracy, with integral nonlinearity (INL) and differential nonlinearity (DNL) specifications that ensure reliable and consistent output.
• Output Drive Capability: The DAC can drive ±10V outputs with a 15ppm/°C reference and has the ability to source or sink up to 10mA of output current.
• Power Efficiency: With a power consumption that is optimized for high efficiency, the LTC2704IGW-16 is suitable for power-sensitive applications.

Applications

The LTC2704IGW-16 is an ideal choice for a wide range of applications that require high-precision analog output. This includes:

• Automated Test Equipment (ATE)
• Process Control and Industrial Automation
• Data Acquisition Systems
• Automotive Systems
• Medical Instrumentation

With its robust design and comprehensive feature set, the LTC2704IGW-16 from Linear Technology is a reliable and versatile solution for any system requiring high-fidelity DAC capabilities.
