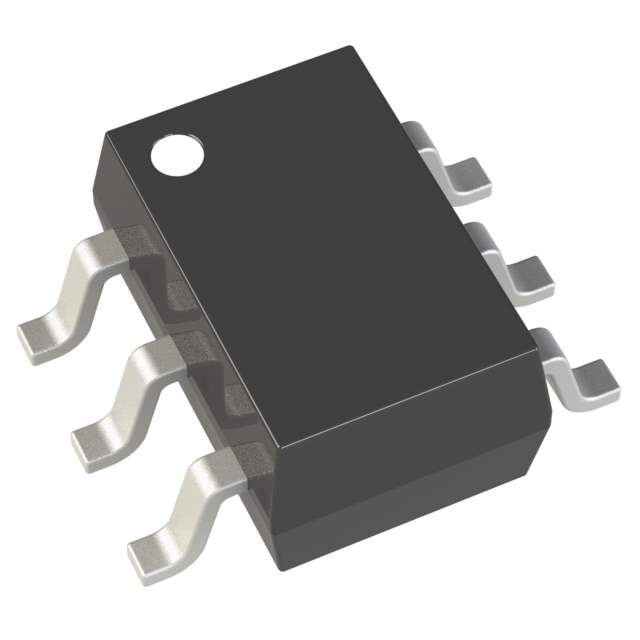

LTC2630ACSC6-HM12#TRPBF - 12-Bit DAC from Linear Technology

The LTC2630ACSC6-HM12#TRPBF is a high-precision 12-bit Digital-to-Analog Converter (DAC) from Linear Technology, designed to deliver exceptional performance in a compact package. This device is part of Linear Technology's family of DACs that offer integrated, high-quality voltage output in a small 6-lead SC70 package, making it ideal for space-constrained applications.

Featuring an integrated, high-accuracy, rail-to-rail output buffer, the LTC2630ACSC6-HM12#TRPBF is capable of driving 10kΩ loads to within 0.5V of the power supply rails, while maintaining low noise and low power operation. The device operates from a single 2.7V to 5.5V supply, providing a versatile solution for various applications, including calibration, motor control, and programmable voltage and current sources.

One of the key features of the LTC2630ACSC6-HM12#TRPBF is its user-friendly interface. It uses a simple 3-wire SPI/MICROWIRE-compatible serial interface that can be easily integrated into a variety of microcontroller-based systems. The device also includes a power-on reset circuit, which ensures that the DAC output powers up to zero volts and remains there until a valid write to the device takes place.

The LTC2630ACSC6-HM12#TRPBF offers guaranteed 12-bit monotonicity and integral nonlinearity (INL) of ±LSB max, providing precise and consistent performance. Additionally, the device features a shutdown mode that reduces the supply current to less than 1μA, which is particularly useful for battery-operated equipment where power conservation is critical.

With its robust feature set and compact form factor, the LTC2630ACSC6-HM12#TRPBF is a versatile choice for designers looking to implement DAC functionality in their systems without compromising on space or performance. Whether used in industrial, automotive, or communication applications, this product from Linear Technology stands out as a reliable and efficient solution for precision analog output requirements.

For detailed specifications and application guidance, designers are encouraged to consult the comprehensive datasheet and technical documentation provided by Linear Technology.
