LTC1799IS5#TRPBF: Precision Silicon Oscillator

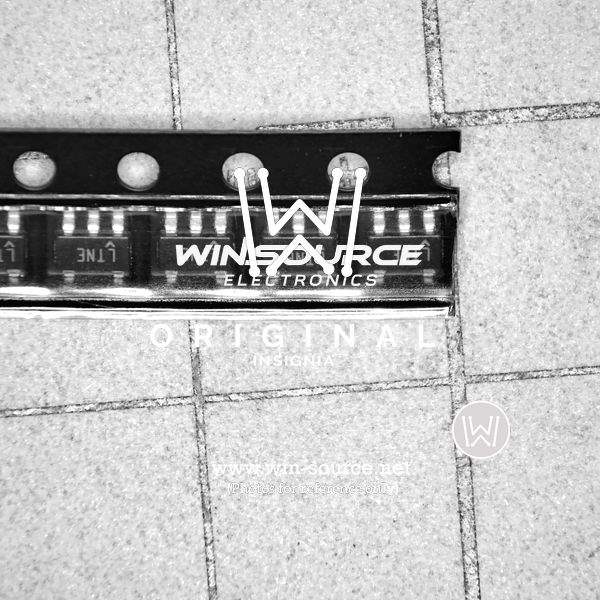

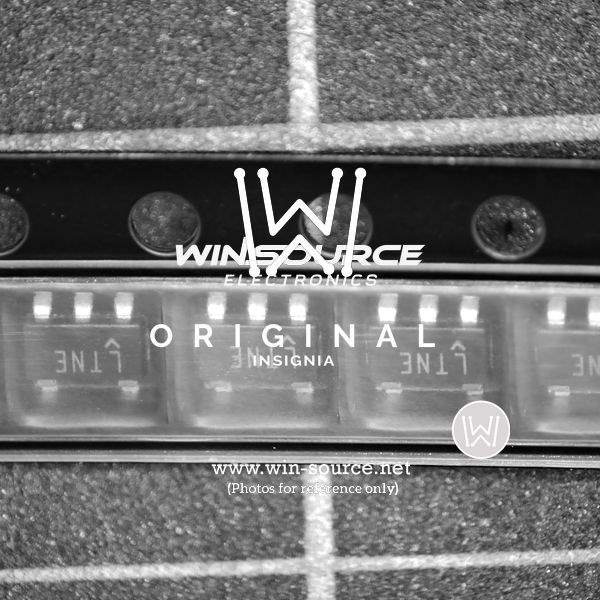

The LTC1799IS5#TRPBF is a compact, high-performance silicon oscillator designed and manufactured by Linear Technology, which is renowned for its innovative and reliable semiconductor products. This precision oscillator is housed in a small SOT-23 package, making it an ideal solution for space-constrained applications that require a stable and accurate clock source.

Key Features

• Frequency Range: The device offers a wide frequency range from 1kHz to 33MHz, which can be adjusted using an external resistor or controlled via a voltage input, providing flexibility for various design requirements.
• Supply Voltage: It operates from a single 2.7V to 5.5V supply, accommodating most common logic levels and making it suitable for battery-powered devices.
• Low Power Consumption: The LTC1799IS5#TRPBF is designed for low power consumption, which is critical for portable and battery-operated applications.
• High Frequency Stability: It maintains high frequency stability over temperature, supply variations, and output load changes, ensuring reliable performance in diverse operating conditions.
• Output Enable: An output enable pin allows the oscillator to be enabled or disabled as needed, providing additional power-saving capabilities and system control.

Applications

The LTC1799IS5#TRPBF is versatile and can be used in a multitude of applications, including but not limited to:

• Portable and wearable electronics
• Wireless communication systems
• Microprocessor and microcontroller clock generation
• Instrumentation and measurement devices
• Automotive systems

Advantages

This oscillator offers several advantages over traditional crystal or ceramic resonators:

• Size: Its small footprint reduces board space requirements.
• Reliability: The absence of mechanical resonating parts enhances reliability and robustness against shock and vibration.
• Adjustability: The ability to fine-tune the frequency easily with an external resistor or voltage control allows for precise calibration.

In summary, the LTC1799IS5#TRPBF is a high-quality, versatile silicon oscillator that provides designers with a stable and accurate timing solution, suitable for a wide range of applications. Its ease of integration, coupled with Linear Technology's reputation for precision engineering, makes it a top choice for engineers looking to optimize their electronic designs.
