LT1460JCS3-5#TRMPBF: Precision Micropower Low Dropout Reference from Linear Technology

The LT1460JCS3-5#TRMPBF is a high-performance, precision micropower voltage reference from Linear Technology, a brand synonymous with reliability and accuracy in the field of analog integrated circuits. This particular model offers a fixed 5V output with exceptional stability and low noise characteristics, making it an ideal choice for high-end precision applications.

Key Features

• Output Voltage: 5V fixed reference voltage, suitable for a wide range of applications requiring a stable reference.
• Low Dropout: The LT1460 has a low dropout performance, ensuring a stable output even with minimal input-to-output differential.
• High Accuracy: It boasts an initial accuracy of ±0.05% max, which is crucial for precision tasks.
• Temperature Coefficient: A low temperature coefficient of 10ppm/°C max over the full operating temperature range enhances its reliability in various environments.
• Low Noise: With a low output noise of only 20µVrms (10Hz to 100kHz), it is well-suited for sensitive electronics where noise can be an issue.
• Long-Term Stability: Excellent long-term stability is assured, with less than 30ppm/√kHr typical drift.
• Supply Current: The device operates with a very low quiescent current, typically 125µA, which is beneficial for power-sensitive applications.

Applications

Due to its high-precision and low-power nature, the LT1460JCS3-5#TRMPBF is perfectly suited for battery-powered equipment, precision data acquisition systems, high-resolution converters, and portable medical devices. It is also an excellent choice for control systems and automotive electronics where a precise reference is crucial for accurate measurements and consistent control.

Package and Reliability

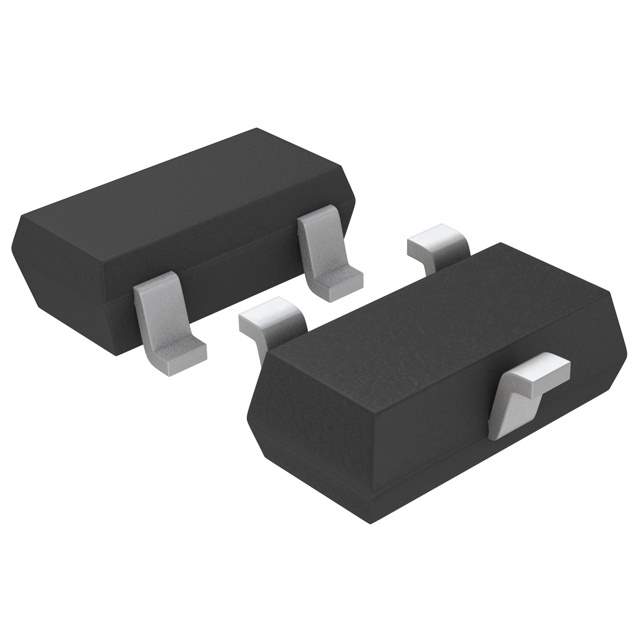

The LT1460JCS3-5#TRMPBF is available in a small surface-mount package, which is ideal for space-constrained applications. It is also characterized for operation from −40°C to 85°C, ensuring reliable performance under a broad range of temperature conditions. The product is supplied in tape and reel form, facilitating efficient handling and manufacturing processes.

With its combination of precision, stability, and low power consumption, the LT1460JCS3-5#TRMPBF from Linear Technology stands out as a superior voltage reference solution for designers looking to enhance the performance of their high-precision electronic systems.
