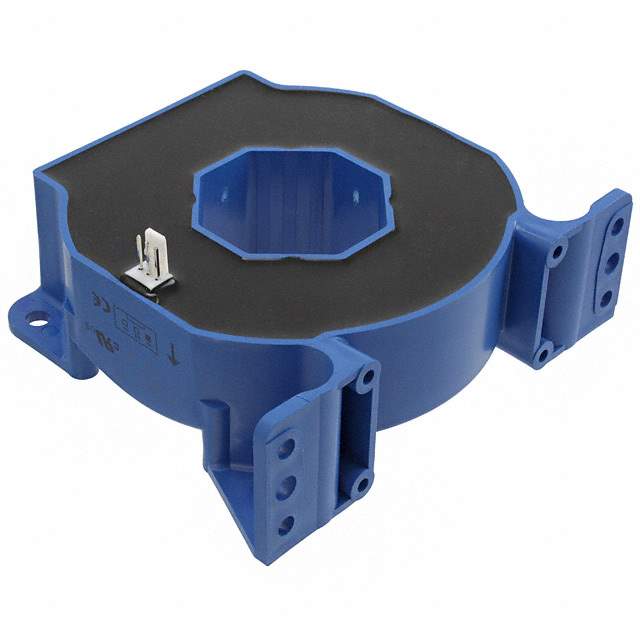

LF 1010-S Real Image
Same model may have multiple batches, images only for reference.

LF 1010-S

Part No LF 1010-S
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description C/L, ASIC 1000A PANEL MOUNT / Current Sensor 1000A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr LEM USA Inc.
Series LF
Package Bulk
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 1000A
Number of Channels 1
Output Ratiometric, Current
Sensitivity 0.2mA/A
Frequency 200kHz
Linearity ±0.15%
Accuracy ±0.2%
Voltage - Supply 14.25V ~ 25.2V
Response Time 0.5µs
Current - Supply (Max) 49mA (Typ)
Temperature Range - Operating -40°C ~ 85°C
Polarization Bidirectional
Mounting Type Panel Mount
Package / Case Module, Single Pass Through
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Names 398-1180
Standard Package 6
Win Source Part Number 1194109-LF 1010-S
Ultra Librarian 3D Model Ultra Librarian LF 1010-S CAD Model

Description

The LEM USA Inc. LF 1010-S is a current sensor suitable for measuring AC/DC.

  • Current Sensing: 1000A
  • Sensitivity: 0.2mA/A
  • Output: Ratiometric, current
  • Polarization: Bidirectional
  • Linearity: ±0.15%
  • Accuracy: ±0.2%
  • Supply Voltage: 14.25V to 25.2V
  • Package: Module, single pass through
  • Standard Package: 6
