Same model may have multiple batches, images only for reference.

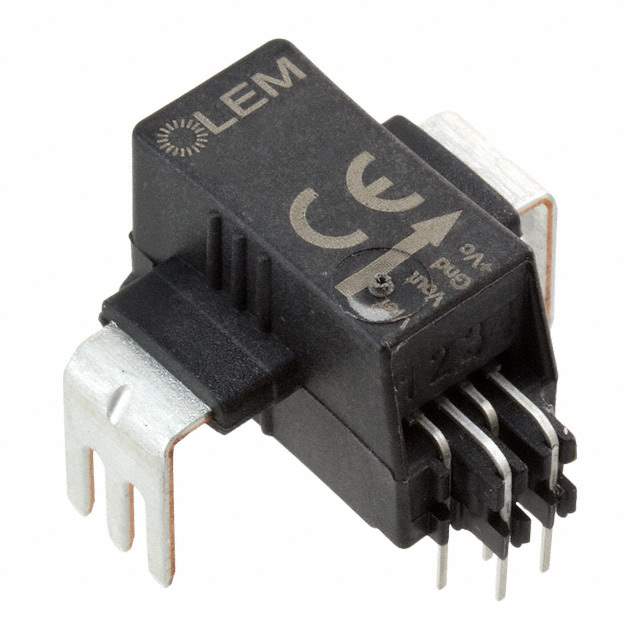

HLSR 32-P/SP33 Real Image
Same model may have multiple batches, images only for reference.

HLSR 32-P/SP33

Part No HLSR 32-P/SP33
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 32A AC/DC / Current Sensor 32A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr LEM USA Inc.
Series HLSR-P/SP33
Package Tray
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 32A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 14.375mV/A
Frequency 400kHz
Linearity ±0.5%
Accuracy ±1%
Voltage - Supply 3.3V
Response Time 2.5µs
Current - Supply (Max) 25mA
Temperature Range - Operating -40°C ~ 105°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
Standard Package 50
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 1341054-HLSR 32-P/SP33
Ultra Librarian 3D Model Ultra Librarian HLSR 32-P/SP33 CAD Model

Description

The HLSR-P/SP33 series is a high-quality current sensor manufactured by LEM USA Inc.

  • Win Source Part Number: 1341054-HLSR 32-P/SP33
  • Package: Tray
  • Response Time: 2.5µs
  • Frequency: 400kHz
  • Output: Ratiometric, voltage
  • Polarization: Bidirectional
  • Current Supply (Max): 25mA
  • Channels: One
  • Sensitivity: 14.375mV/A
  • Measurement: AC/DC
  • Sensor Type: Hall Effect, Open Loop
  • Current Sensing: 32A
  • Linearity: ±0.5%
  • Accuracy: ±1%
  • Voltage Supply: 3.3V
  • Mounting Type: Through-hole
  • Package/Case: Module
  • Temperature Range: -40°C ~ 105°C
