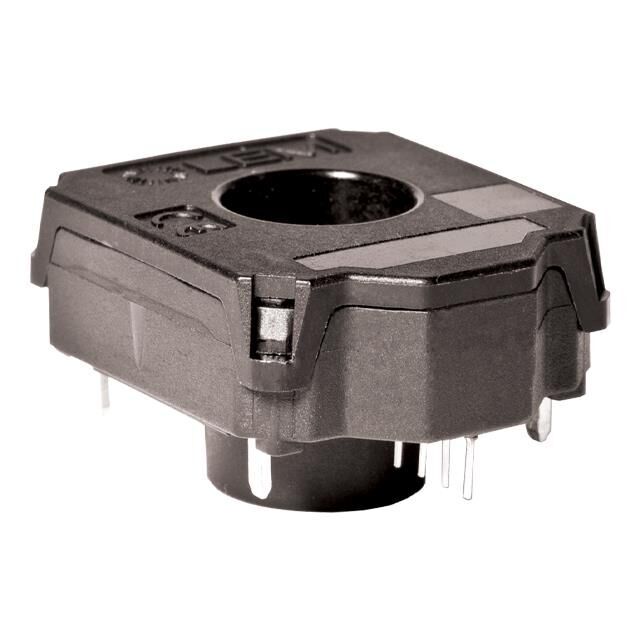

Same model may have multiple batches, images only for reference.
HC5FW 800-S/SP1 LEM USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HC5FW 800-S/SP1

Part No HC5FW 800-S/SP1
Manufacturer LEM USA Inc.
Catalog Current Sensors
Description TRANSDUCER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, TransducersCurrent Sensors
Mfr LEM USA Inc.
Series HC5FW
Packaging Bulk
Part Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 800A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 2.5mV/A
Frequency 40kHz
Linearity ±1%
Accuracy ±3%
Voltage - Supply 4.75V ~ 5.25V
Response Time 6μs
Current - Supply (Max) 25mA
Operating Temperature -40°C ~ 125°C
Polarization Unidirectional
Mounting Type Through Hole
Package / Case Module, Single Pass Through
Ultra Librarian 3D Model Ultra Librarian HC5FW 800-S/SP1 CAD Model
