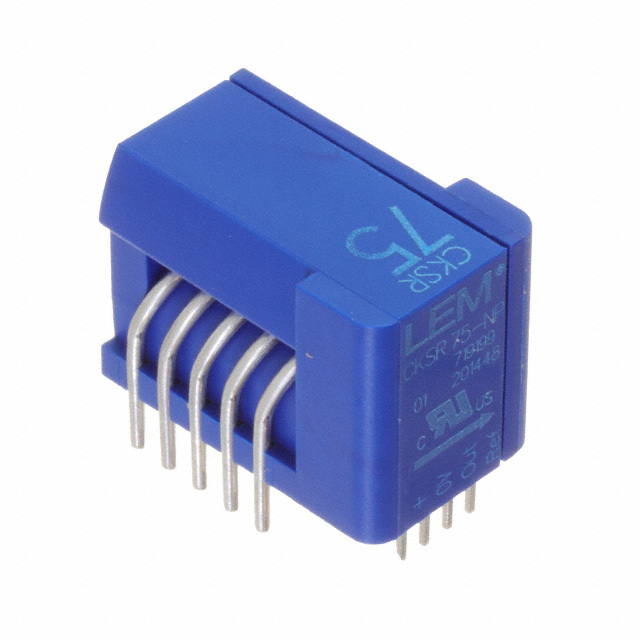

CKSR 75-NP LEM USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CKSR 75-NP

Part No CKSR 75-NP
Manufacturer LEM USA Inc.
Catalog Current Sensors
Description SENSOR CURRENT FLUX 75A AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, TransducersCurrent Sensors
Mfr LEM USA Inc.
Series CKSR
Packaging Tray
Part Status Active
For Measuring AC/DC
Sensor Type Flux Gate, Closed Loop
Current - Sensing 75A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 12.5mV/A
Frequency 300kHz
Linearity ±1%
Accuracy ±0.8%
Voltage - Supply 4.75 ~ 5.25V
Response Time 0.3μs
Current - Supply (Max) 20mA
Operating Temperature -40°C ~ 105°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
Ultra Librarian 3D Model Ultra Librarian CKSR 75-NP CAD Model
