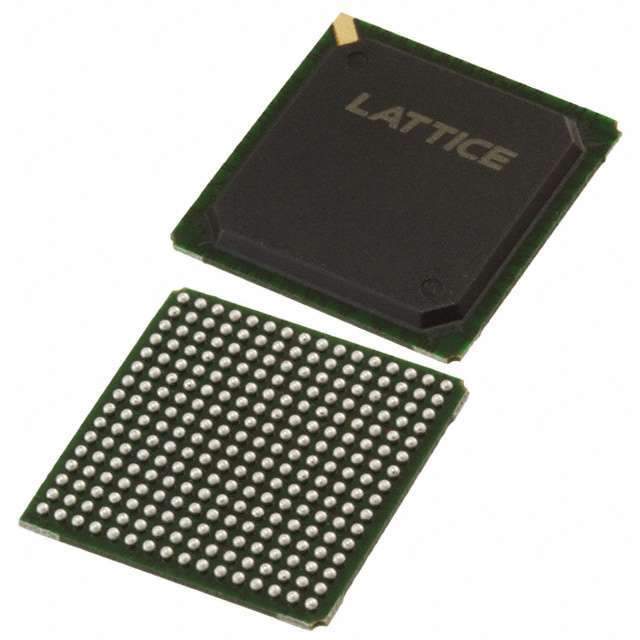

LC5256MB-4F256C Real Image
Same model may have multiple batches, images only for reference.

LC5256MB-4F256C

Part No LC5256MB-4F256C
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description 3.3V, 2.5V and 1.8V In-System Programmable eXpanded Programmable Logic Device XPLD™ Family
Datasheet
LC5256MB-4F256C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Lattice Semiconductor Corporation
Series ispXPLD 5000MB
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 4.0ns
Voltage Supply - Internal 2.3 V ~ 2.7 V
Number of Logic Elements/Blocks 8
Number of Macrocells 256
Number of I/O 141
Operating Temperature Range 0°C ~ 90°C (TJ)
Mounting SMD
Package 256-BGA
Manufacturer Package 256-FPBGA (17x17)
Win Source Part Number 1195477-LC5256MB-4F256C
Manufacturer Homepage www.latticesemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name ispXPLD 5256MB
Introduction Date November 21, 2000
Country of Origin Malaysia, Philippines
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian LC5256MB-4F256C CAD Model

Description

The Lattice Semiconductor Corporation ispXPLD 5000MB series is a programmable integrated circuit designed for use in electronic devices.

  • Manufacturer: Lattice Semiconductor Corporation
  • Series: ispXPLD 5000MB
  • Product Name: ispXPLD 5256MB
  • Macrocells: 256
  • Logic Elements/Blocks: 8
  • Programmable: In-system
  • Delay Time tpd(1) max: 4.0ns
  • Voltage Supply Range: 2.3V to 2.7V
  • Internal Temperature Range: 0°C to 90°C (TJ)
  • Package: 256-BGA
  • Mounting: SMD technology
  • Status: Obsolete
  • Estimated EOL Date: N/A
