Same model may have multiple batches, images only for reference.

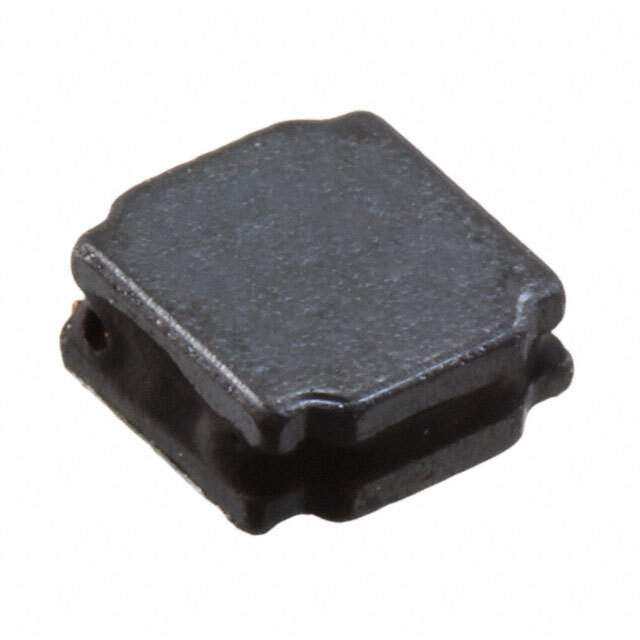

TYS40186R8M-10 Real Image
Same model may have multiple batches, images only for reference.

TYS40186R8M-10

Part No TYS40186R8M-10
Manufacturer Laird-Signal Integrity Products
Catalog Fixed Inductors
Description FIXED IND 6.8UH 1.06A 110MOHM SM / 6.8 µH Shielded Inductor 1.06 A 110mOhm Max Nonstandard
Datasheet
TYS40186R8M-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 1.06 A
Current - Saturation (Isat) 1.45A
Shielding Shielded
DC Resistance (DCR) 110mOhm Max
Frequency - Self Resonant 29MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 240-2679-6,240-2679-1,240-2679-2
Standard Package 3,000
Win Source Part Number 1327372-TYS40186R8M-10
Ultra Librarian 3D Model Ultra Librarian TYS40186R8M-10 CAD Model

Description

The Laird-Signal Integrity Products 1327372-TYS40186R8M-10 is a fixed inductor in a shielded reel - TR packaging.

  • Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Inductance: 6.8 µH
  • Seated Height: 0.079" (2.00mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 110mOhm Max
  • Saturation Current Rating: 1.45A
  • Mounting: Surface Mount
  • Temperature Range: -40°C ~ 125°C
  • Compliant with: ROHS3 and REACH regulations
  • ECCN: EAR99
