Same model may have multiple batches, images only for reference.

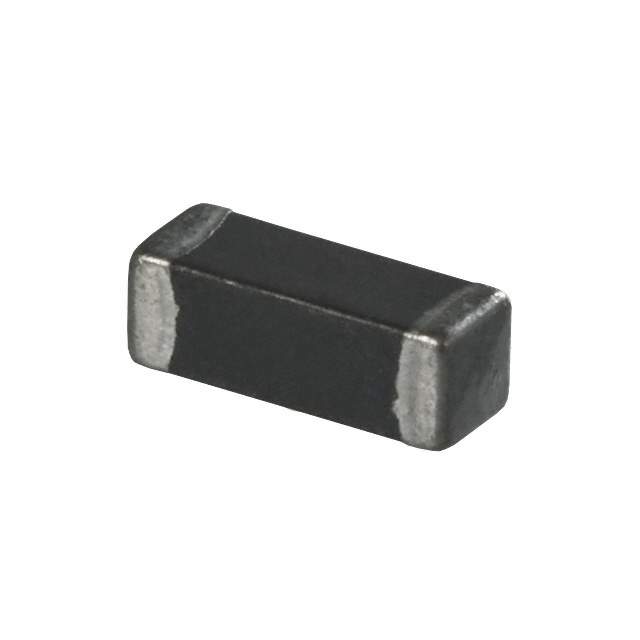

MI1806J800R-10 Real Image
Same model may have multiple batches, images only for reference.

MI1806J800R-10

Part No MI1806J800R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 78 OHM 1806 1LN
Datasheet
MI1806J800R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 78 Ohm @ 100MHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 30 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.073" (1.85mm)
Dimension 0.177" L x 0.063" W (4.50mm x 1.60mm)
Win Source Part Number 044696-MI1806J800R-10
Ultra Librarian 3D Model Ultra Librarian MI1806J800R-10 CAD Model

Description

The Laird-Signal Integrity Products 044696-MI1806J800R-10 is a power line filter designed for use in electronic circuits.

  • Maximum Current Rating: 1A
  • DC Resistance: 30 mOhm
  • Height: 0.073" (1.85mm)
  • Mounting: SMD (SMT) technology
  • Line Count: 1
  • Impedance: 78 Ohm @ 100MHz
  • Category: Filters
  • Product Status: currently active
  • Temperature Range: -40°C to 125°C
  • Dimensions: 0.177" L x 0.063" W (4.50mm x 1.60mm)
