Same model may have multiple batches, images only for reference.

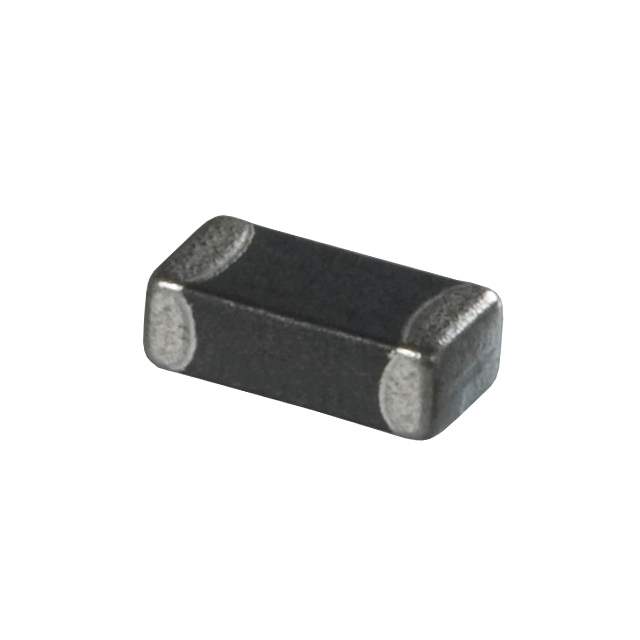

HZ1206E152R-10 Real Image
Same model may have multiple batches, images only for reference.

HZ1206E152R-10

Part No HZ1206E152R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 950 OHM 1206 1LN
Datasheet
HZ1206E152R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Active
Number of Lines 1
Impedance @ Frequency 950 Ohm @ 100MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 300 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Win Source Part Number 114783-HZ1206E152R-10
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HZ1206E152R-10 CAD Model

Description

The Laird-Signal Integrity Products HZ1206E152R-10 is a surface mountable filter designed to reduce electromagnetic interference (EMI) in electronic circuits.

  • Impedance: 950 Ohm at 100MHz
  • Maximum Current Rating: 500mA
  • Maximum DC Resistance: 300mOhm
  • Package Size: 0.051" (1.30mm)
  • Packaging: Reel
  • Series: HZ
