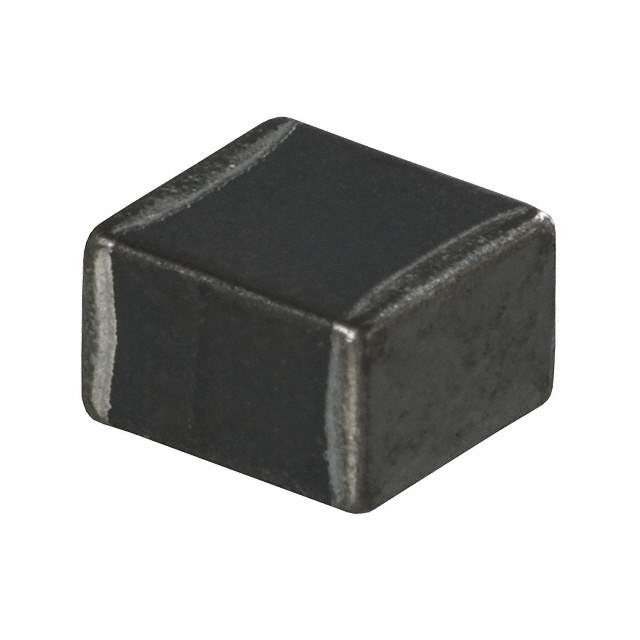

HR2220V801R-00

Part No HR2220V801R-00
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 800 OHM 2220 1LN / Ferrite Beads Power Chip 800Ohm 25% 100MHz 8A 0.01Ohm DCR 2220 T/R
Datasheet
HR2220V801R-00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Series HR
Packaging Reel package
Part Status Obsolete(EOL)
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 800 Ohm @ 100MHz
Current Rating (Maximum) 8A
DC Resistance (DCR) (Maximum) 10 mOhm
Operating Temperature Range -40°C ~ 125°C
Package 2220 (5650 Metric)
Mounting SMD
Height (Maximum) 0.146" (3.70mm)
Dimension 0.220" L x 0.200" W (5.59mm x 5.08mm)
Win Source Part Number 776187-HR2220V801R-00
Popularity Medium
Supply and Demand Status Limited
Family Name HR
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian HR2220V801R-00 CAD Model

Description

The HR2220V801R-00 is a power and signal line filter from Laird-Signal Integrity Products.

  • Packaging: Reel
  • Filter Type: Power, Signal Line
  • Impedance: 800 Ohm @ 100MHz
  • Applications: Electronic circuits requiring power and signal line filter
  • Category: Filters
  • Popularity: Medium
