Same model may have multiple batches, images only for reference.

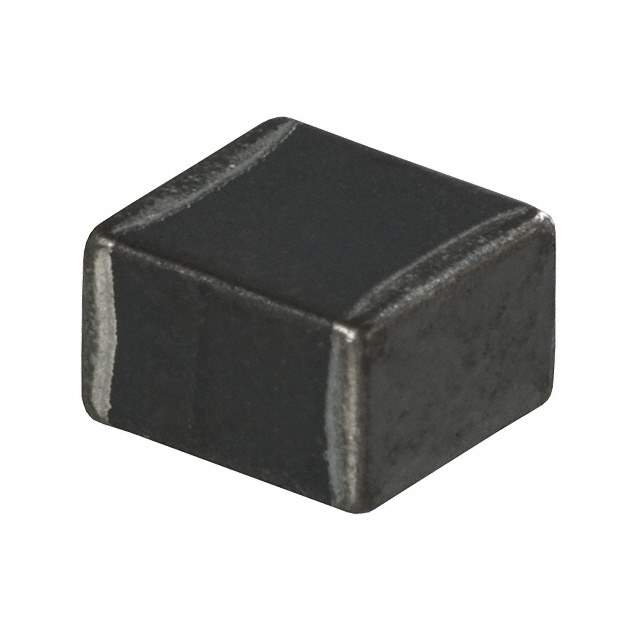

HI2220P701R-10 Real Image
Same model may have multiple batches, images only for reference.

HI2220P701R-10

Part No HI2220P701R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 700 OHM 2220 1LN / Ferrite EMI Chip Beads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Laird-Signal Integrity Products
Packaging Reel
Filter Type Power, Signal Line
Number of Lines 1
Impedance at Frequency 700 Ohms at 100MHz
Current Rating (Maximum) 4A
DC Resistance (DCR) (Maximum) 25mOhm
Temperature Range - Operating -40°C ~ 125°C
Manufacturer Package 2220 (5650 Metric)
Mounting Style SMD
Height (Maximum) 0.130" (3.30mm)
Dimension 0.220" L x 0.200" W (5.59mm x 5.08mm)
Manufacturer Pack Quantity 2,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804244-HI2220P701R-10
Ultra Librarian 3D Model Ultra Librarian HI2220P701R-10 CAD Model

Description

The HI2220P701R-10 is a power and signal line filter from Laird-Signal Integrity Products.

  • Mounting Type: SMD (SMT)
  • Packaging: Reel
  • Maximum Current: 4A
  • DC Resistance (DCR): 25mOhm
  • Impedance: 700 Ohms @ 100MHz
  • Temperature Range: -40°C ~ 125°C
  • Applications: Power supplies, motor control, lighting
