Same model may have multiple batches, images only for reference.

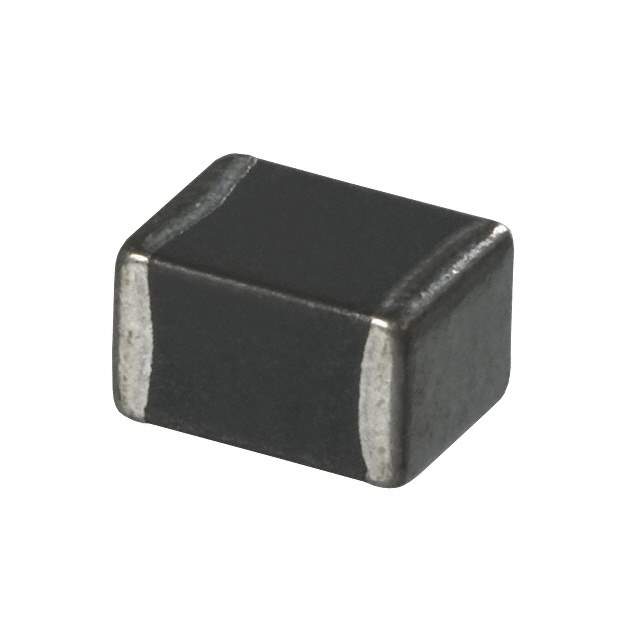

DM1612X560R-00 Real Image
Same model may have multiple batches, images only for reference.

DM1612X560R-00

Part No DM1612X560R-00
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 46 OHM 1612 1LN  /  46 Ohms @ 100 MHz 1 Ferrite Bead 1612 (4030 Metric) 10A 4mOhm
Datasheet
DM1612X560R-00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr Laird-Signal Integrity Products
Series DM
Package Tape & Reel
Product Status Obsolete
Number of Lines 1
Impedance @ Frequency 46 Ohms @ 100 MHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 4mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1612 (4030 Metric)
Mounting SMD (SMT)
Height (Max) 0.090" (2.28mm)
Dimension 0.160" L x 0.120" W (4.06mm x 3.05mm)
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names DM1612X560R00,240-1128-6,240-1128-2,240-1128-1
Standard Package 2,500
Win Source Part Number 1208302-DM1612X560R-00
Ultra Librarian 3D Model Ultra Librarian DM1612X560R-00 CAD Model

Description

The Laird-Signal Integrity Products DM1612X560R-00 is an obsolete electronic component used for filtering in various electronic applications.

  • Series: DM
  • Package: 2,500
  • Package/Case: 1612 (4030 Metric)
  • Temperature Range: -55°C to 125°C
  • Win Source Part Number: 1208302-DM1612X560R-00
