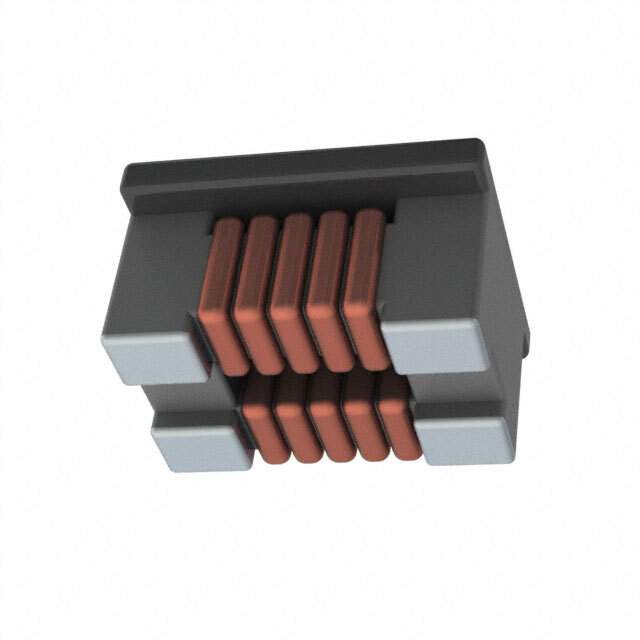

CM7060W101R-10 Real Image
Same model may have multiple batches, images only for reference.

CM7060W101R-10

Part No CM7060W101R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 9A 2LN 140 OHM SMD / 2 Line Common Mode Choke Surface Mount 140 Ohms @ 100 MHz 9A DCR 10mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 140 Ohms @ 100 MHz
Current Rating (Max) 9A
DC Resistance (DCR) (Max) 10mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Size / Dimension 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height (Max) 0.150" (3.80mm)
Case / Package Horizontal, 4 PC Pad
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 240-2981-6,240-2981-2,240-2981-1
Standard Package 1,500
Win Source Part Number 1328203-CM7060W101R-10
Ultra Librarian 3D Model Ultra Librarian CM7060W101R-10 CAD Model

Description

The CM7060W101R-10 is a common mode choke manufactured by Laird-Signal Integrity Products.

  • Manufacturer: Laird-Signal Integrity Products
  • Product Name: CM7060W101R-10
  • Voltage Rating: 80 volts DC
  • Maximum Current Rating: 9 amperes
  • Mounting: Surface Mountable
  • Size: 0.276 inches by 0.236 inches
  • Application: Power Line
  • Impedance: 140 ohms @ 100 megahertz
  • ROHS3: Compliant
  • REACH: Unaffected
