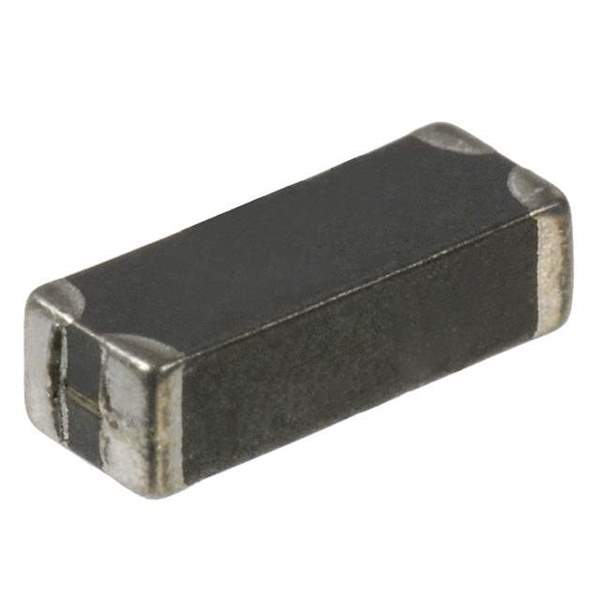

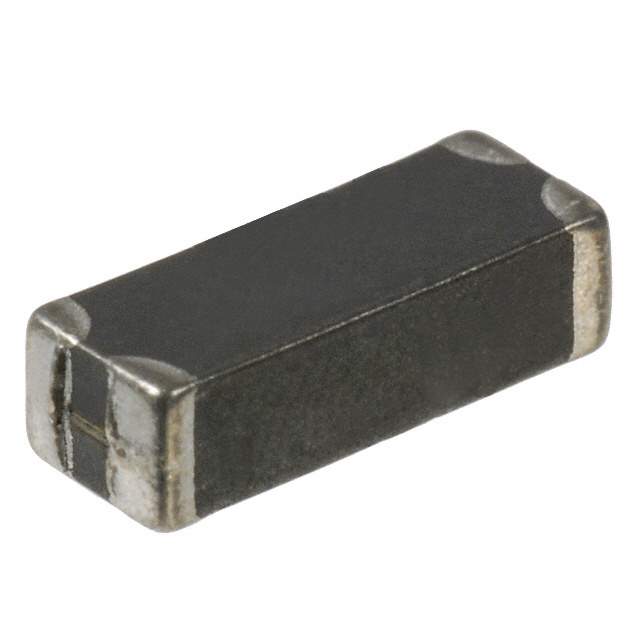

CM3312R111R-10 Real Image
Same model may have multiple batches, images only for reference.

CM3312R111R-10

Part No CM3312R111R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 5A 2LN 110 OHM SMD
Datasheet
CM3312R111R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel
Status Obsolete
Filter Type Power, Signal Line
Number of Lines 2
Impedance at Frequency 110 Ohms at 100MHz
Current Rating (Maximum) 5A
DC Resistance (DCR) (Maximum) 5mOhm
Mounting Style SMD
Parts Dimension 0.335" L x 0.120" W (8.50mm x 3.05mm)
Height (Maximum) 0.103" (2.61mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759940-CM3312R111R-10
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CM3312R111R-10 CAD Model

Description

The Laird-Signal Integrity Products 759940-CM3312R111R-10 is a two-line power and signal line filter manufactured by Laird-Signal Integrity Products.

  • Maximum Current: 5A
  • DC Resistance (DCR): 5mOhm
  • Impedance: 110 Ohms @ 100MHz
  • Packaging: Reel
  • Height: 0.103" (2.61mm)
  • Mounting Type: Surface Mount
  • Status: Obsolete
  • Popularity: High
